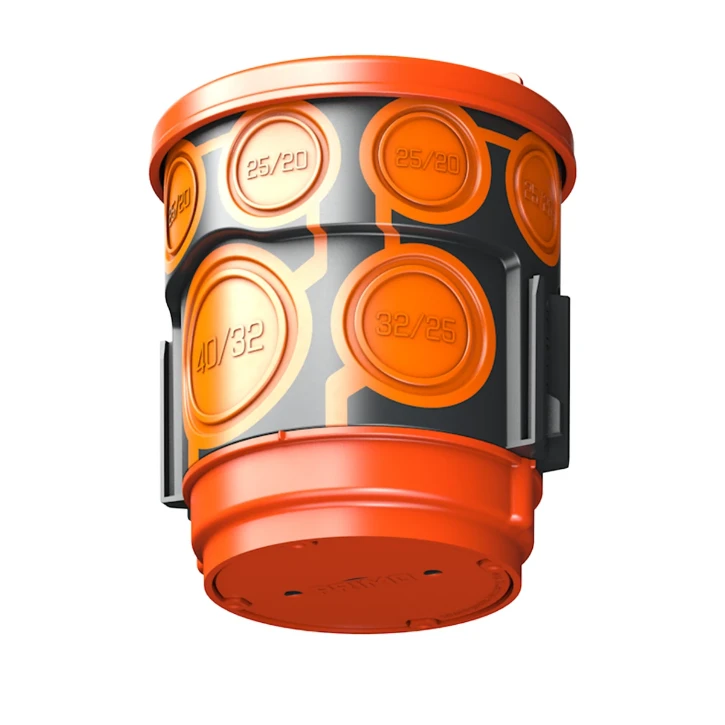

Universalgroßdose U70 3-teilig, Betonbau
- 7589-2975
- |
- P421-70-3
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Universalgroßdose U70 3-teilig, Betonbau
Universalgroßdose U70 3-teilig, Betonbau
Ordercode YESSS
7589-2975
Product code
P421-70-3
EAN code
4260182066584
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
Primo
Type
P421-70-3
Product description
Die Universalgroßdose kann im Ortbeton sowie in der Werksfertigung als Geräteverbindungsdose, Deckenverbindungsdose, Flügelbetondose oder Elektronikdose eingesetzt werden. Ein optionaler Trennsteg (P421-T) ermöglicht die Installation zweier getrennter Stromkreise. Wahlweise mit oder ohne Flügel (P761) verwendbar, bietet die Betondose viel Klemmraum. Die Einführungen M20 bis M40 mit Membrantechnik sorgen für sichere Zugentlastung und garantieren absolute Betondichte. Verschiedene Frontteile mit 60 oder 70 mm Durchmesser erhöhen die Flexibilität bei der Installation.
Product specifications
Mounting method
Concrete building
Diameter
70 mm
Shape
Round
Provided with revolving ring
No
Airtight
Yes
Couplable
No
With screws
No
Construction type
Device connection box (round/square)
Model
Single
Equipped with
Mounting plate
Length
102 mm
Depth
111 - 111 mm
Width
102 mm
Inner depth
105 mm
For number of device inserts
1
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
Yes
For tube diameter
20/25 mm
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
No
Number of inlets
12
Material
Plastic
Pipe locking optional
Yes
Halogen free
Yes
Surface protection
Untreated
Colour
Orange
Number of included spouts
0
Degree of protection (IP)
IP3X
Cover attachment
Bayonet latch
Sealable
No
Circuit integrity
None
With screening
No
Degree of protection (NEMA)
Other
Max. conductor cross section
6 mm²
Cover model
Cover with hook
Transparent cover
No
Luminaire hook mounting
No
Nozzle
Double nozzle
Special application
Other
Suitable for wall/board thickness
130 - 130 mm
Number of non-adjustable device fixing lugs
4
Number of adjustable device fixing lugs
0
With partition panel
No
