Power supply unit
- 0820-2877
- |
- 2868648
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

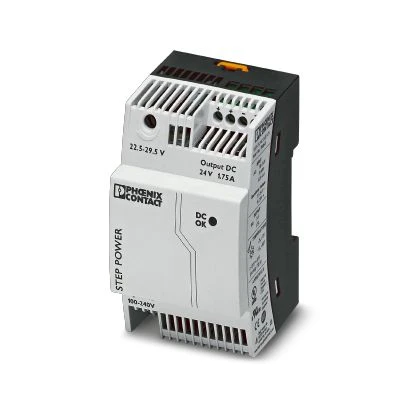

Power supply unit
Power supply unit
Ordercode YESSS
0820-2877
Product code
2868648
EAN code
4046356172844
Product group
DC-power supply
Brand
Phoenix Contact
Type
STEP-PS/ 1AC/24DC/1.75
Product description
Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.75 A
Product specifications
Voltage type (supply voltage)
AC/DC
Secondary voltage adjustable
Yes
Power output
42 W
Output voltage stabilized
Yes
Stabilized
Yes
Short-circuit-proof
Yes
1st secondary output voltage
24 - 29.5 V
Max. output current 1
1.75 A
Nominal value output voltage 1
24 V
Rated supply voltage AC 50 Hz
85 - 240 V
Degree of protection (IP)
IP20
Nominal value output current 1
1.75 A
Rated supply voltage AC 60 Hz
100 - 264 V
Rated supply voltage DC
95 - 250 V
Power consumption
84.2 VA
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Built-in height
90 mm
Width in number of modular spacings
3
Direct mounting possible
Yes
Width
54 mm
Height
90 mm
Depth
61 mm
Suitable for safety functions
Yes
SIL according to IEC 61508
None
