General information

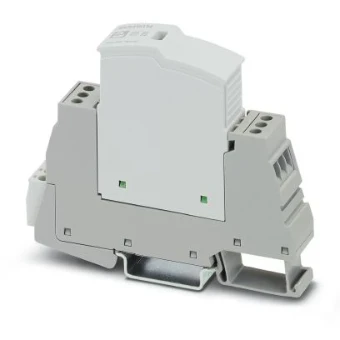

Type 3 surge protection device
Type 3 surge protection device
Ordercode YESSS
6252-5860
Product code
2907919
EAN code
4055626257457
Product group
Surge protection device for terminal equipment
Brand
Phoenix Contact
Type
PLT-SEC-T3-230-FM-UT
Product description
Type 2/3 surge protection, consisting of protective plug and base element with screw connection. For single-phase power supply network with integrated status indicator and remote signaling. Nominal voltage: 230 V AC/DC
Product specifications
Nominal voltage AC
240 V
Number of poles
2
Max. conductor cross section solid (solid, stranded)
4 mm²
Max. continuous voltage AC
264 V
Max. continuous voltage DC
275 V
Mounting method
Other
Nominal load current
26 A
Nominal discharge surge current (8/20) (L-N)
5 kA
Total discharge current (8/20) (L+N-PE)
5 kA
Voltage protection level
1.25 kV
Voltage protection level L-N
1.25 kV
Voltage protection level L-PE/N-PE
1.4 kV
With remote signalling contact
Yes
Signalling at the device
Optical
Category type 3
Yes
With interference suppressor filter
No
