General information

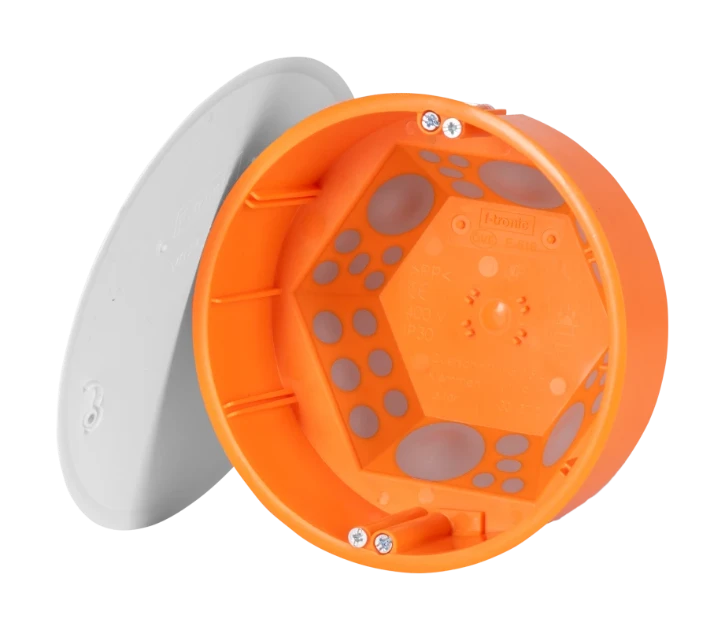

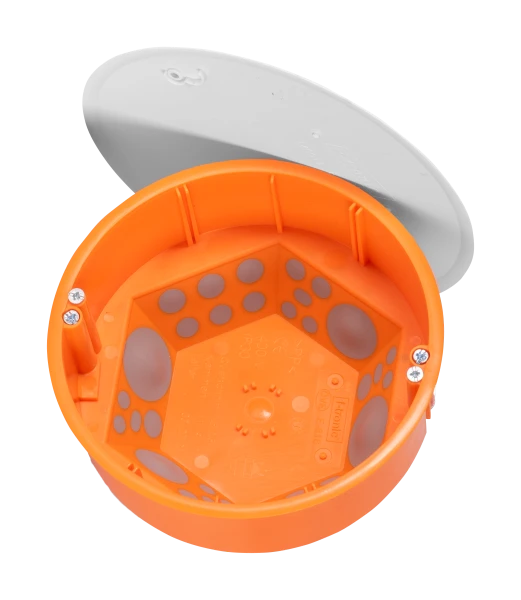

HW Abzweigdose E816 Ø 120mm, winddicht, inkl. Deckel
HW Abzweigdose E816 Ø 120mm, winddicht, inkl. Deckel
Ordercode YESSS
3849-2965
Product code
7360016
EAN code
4034338629400
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
f-tronic
Type
E816
Product description
- Luftdicht durch 2K-Membrantechnik
- Montagefreundlich durch werkzeuglose Leitungs- und Rohreinführungen
- Integrierter Leitungsrückhalt für NYM Leitungen
- Sicheres Fixieren der Rohre
- ÖVE zertifiziert
Product specifications
Mounting method
Hollow wall
Diameter
120 mm
Shape
Round
Provided with revolving ring
No
Airtight
Yes
Couplable
No
With screws
Yes
Construction type
Cable junction box
Model
Single
Equipped with
None
Depth
65 - 65 mm
Inner depth
64 mm
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
Yes
For tube diameter
20/25 mm
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
No
Number of inlets
28
Material
Plastic
Pipe locking optional
No
Halogen free
No
Surface protection
Untreated
Colour
Orange
Degree of protection (IP)
IP30
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
4 mm²
Cover model
Blind cover
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Suitable for wall/board thickness
5 - 40 mm
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
