HW Abzweigkasten E116, 104x104mm, inkl. Schraubdeckel
- 0216-9091
- |
- 7350033
24
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

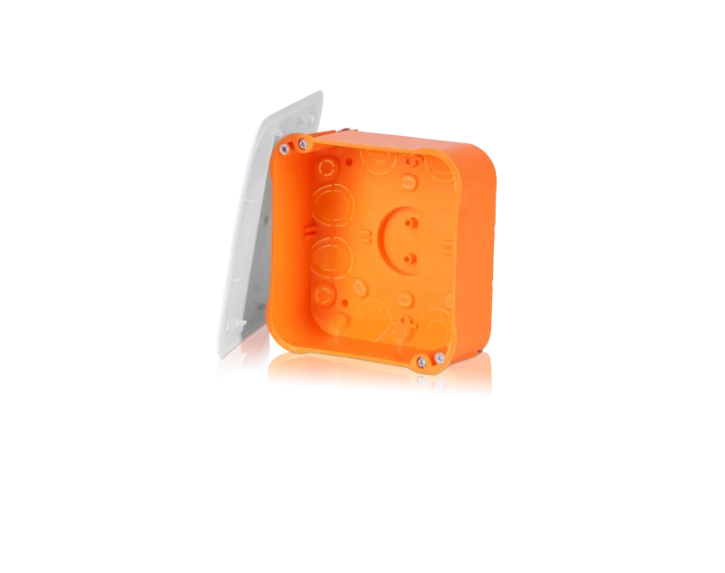

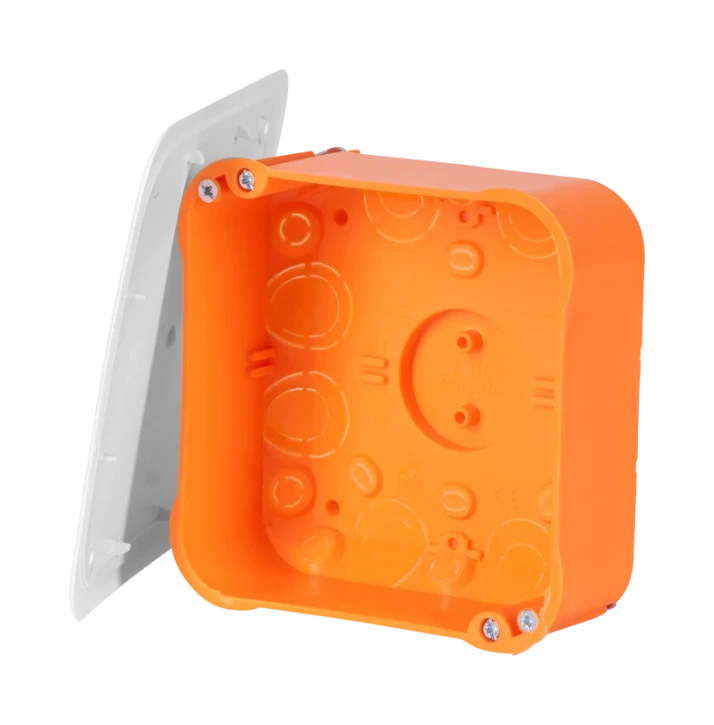

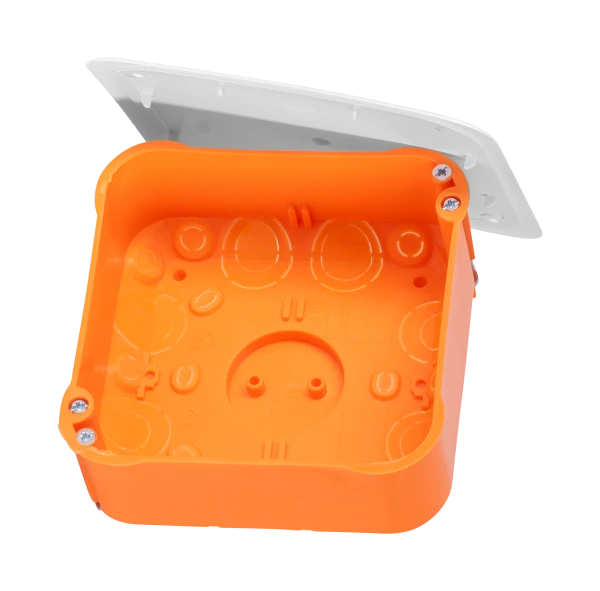

HW Abzweigkasten E116, 104x104mm, inkl. Schraubdeckel
HW Abzweigkasten E116, 104x104mm, inkl. Schraubdeckel
Ordercode YESSS
0216-9091
Product code
7350033
EAN code
4034338316102
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
f-tronic
Type
E116
Product description
HW Abzweigkasten E116. 104x104mm. Zubehör: Schraubdeckel. Farbe orange.
Product specifications
Mounting method
Hollow wall
Shape
Square
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
Yes
Construction type
Cable junction box
Model
Single
Equipped with
None
Length
105 mm
Depth
51 - 51 mm
Width
105 mm
Inner depth
42 mm
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
16/20 mm
Housing feed-through by nozzle
No
Suitable for cable diameter
8.2 - 14.6 mm
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
No
Number of inlets
16
Material
Plastic
Pipe locking optional
No
Halogen free
No
Surface protection
Untreated
Colour
Orange
Degree of protection (IP)
IP30
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
4 mm²
Cover model
Blind cover
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
Compliant with BS 4662
No
