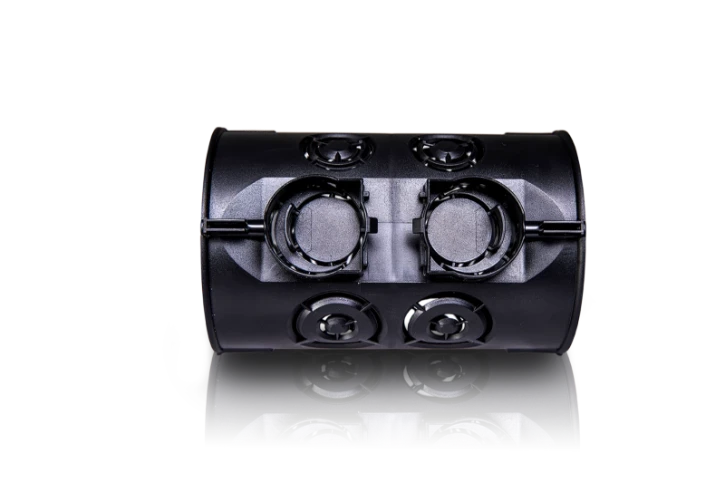

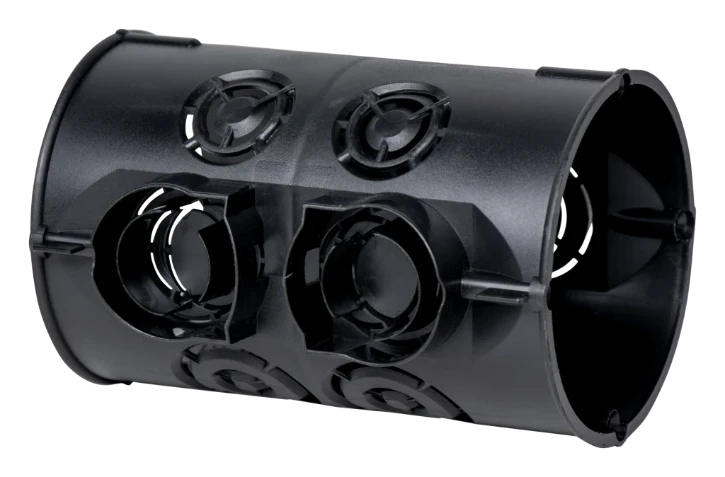

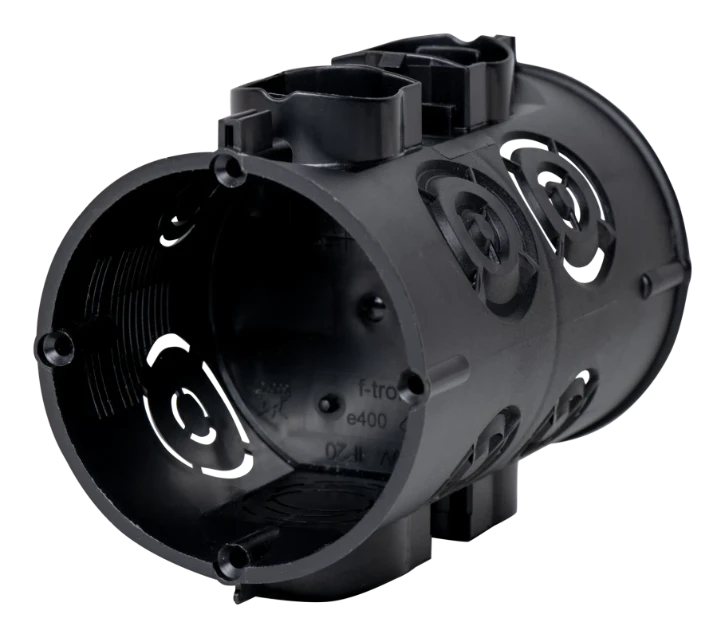

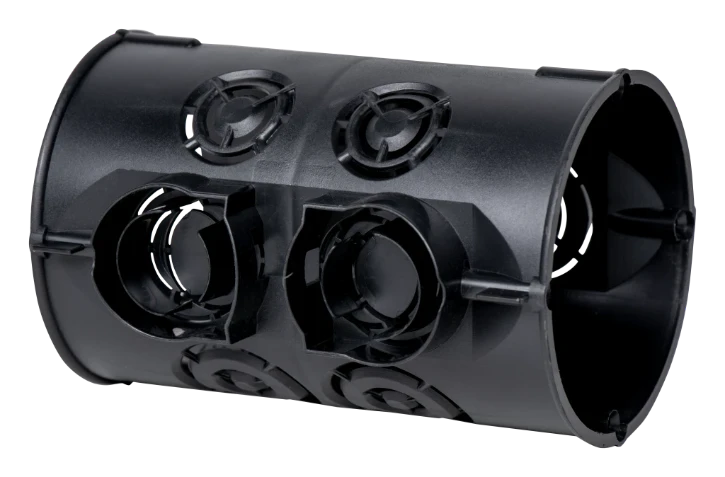

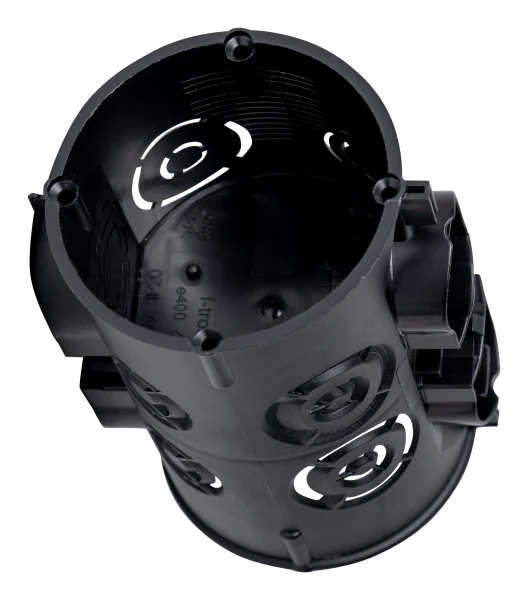

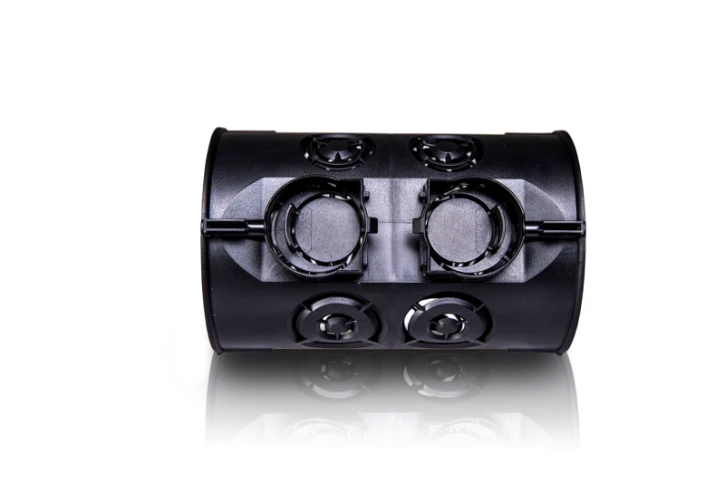

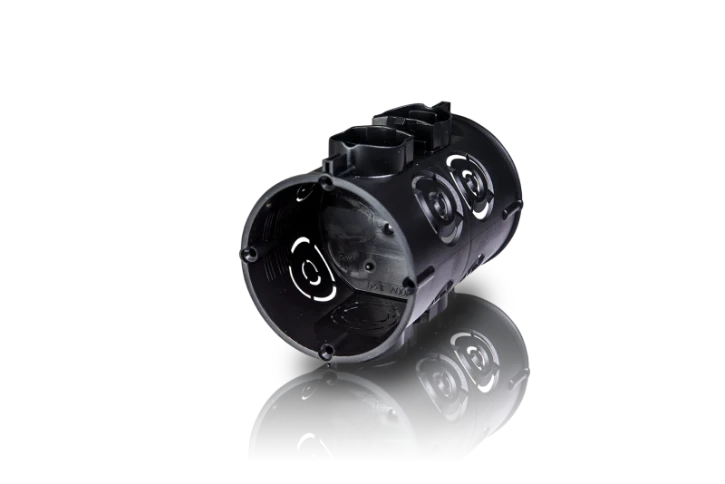

UP Geräte-Doppeldose E400, t=100mm, zur gegenüberliegenden Inst.

  • 6238-8655
  • |
  • 7310155
6 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

UP Geräte-Doppeldose E400, t=100mm, zur gegenüberliegenden Inst. UP Geräte-Doppeldose E400, t=100mm, zur gegenüberliegenden Inst.
Ordercode YESSS
6238-8655
Product code
7310155
EAN code
4034338921221
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
f-tronic
Type
E400

Product description

Schneller installiert dank der DUPLEX

  • Optimal geeignet für gegenüberliegende Installation in 100 mm Trennwand
  • Kombinierbar mit allen UP-Dosen
  • Mehr Verdrahtungsraum
  • Rohr- und Leitungseinführungen
  • Erweiterbar mit Putzausgleichsringen E130/E132
  • Ein-Mann-Montage

Product specifications

Mounting method
Flush-mounted
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Device connection box (round/square)
Model
Other
Equipped with
None
Length
80 mm
Depth
100 - 100 mm
Width
66 mm
Inner depth
98 mm
For number of device inserts
2
Mounting switching equipment
Screw or spread out
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20/25 mm
Housing feed-through by nozzle
Yes
Suitable for cable diameter
8.2 - 13.3 mm
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
No
Number of inlets
12
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Surface protection
Untreated
Colour
Black
Degree of protection (IP)
IP20
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
2.5 mm²
Cover model
None
Luminaire hook mounting
No
Nozzle
Pipe socket
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
Manufacturer's website
