General information

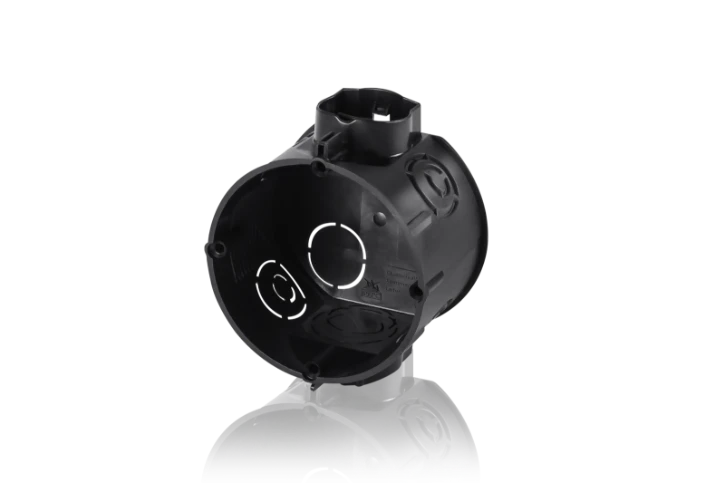

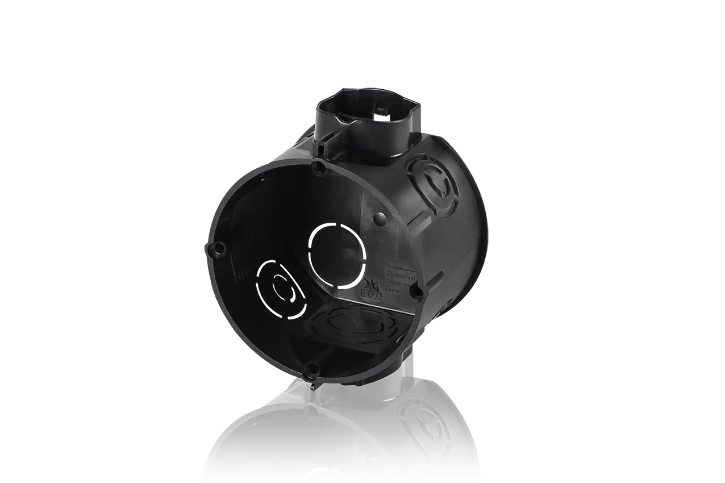

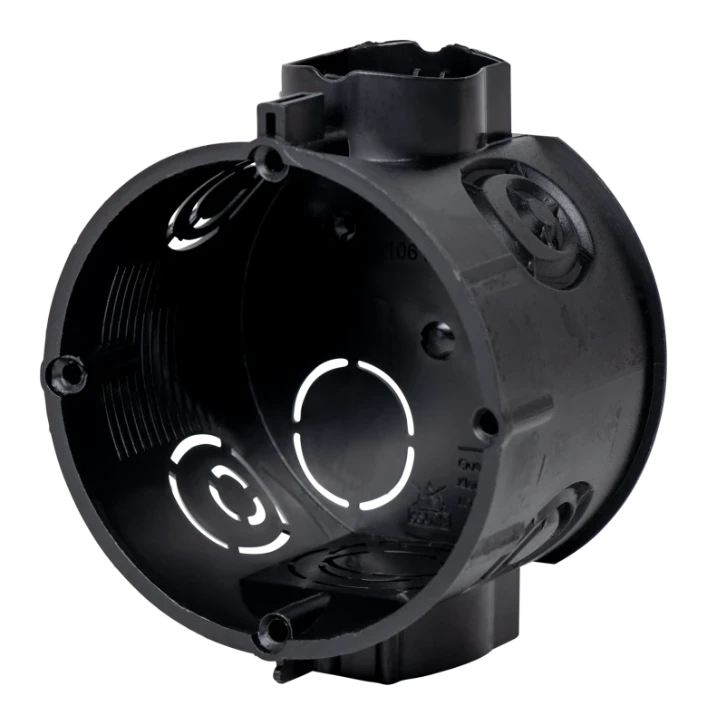

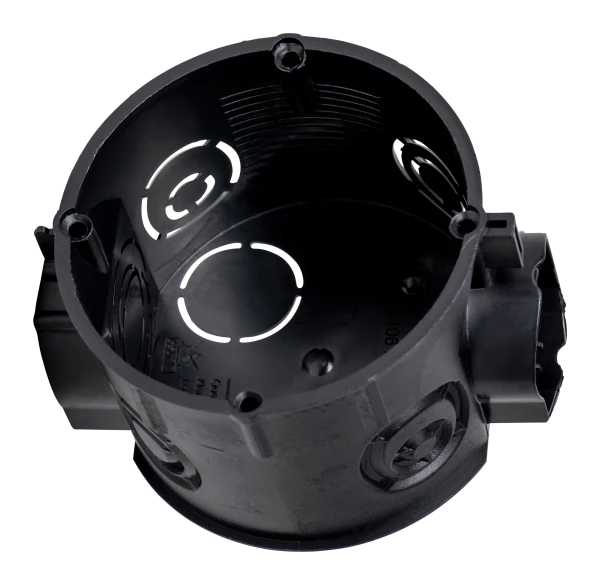

UP Gerätedose E106M25, t=46mm
UP Gerätedose E106M25, t=46mm
Ordercode YESSS
4465-4119
Product code
7310129
EAN code
4034338915398
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
f-tronic
Type
E106M25
Product description
Die Grundlage einer guten UP-Installation
- Flexibel kombinierbar mit allen UP-Dosen
- 20 und 25 mm Rohreinführung
- 4x Schraubdom und 2x Fläche für Spreizkrallenfedern
Product specifications
Mounting method
Flush-mounted
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Built-in installation box (device box)
Model
Single
Equipped with
None
Length
80 mm
Depth
46 - 46 mm
Width
66 mm
Inner depth
45 mm
For number of device inserts
1
Mounting switching equipment
Screw or spread out
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20/25 mm
Housing feed-through by nozzle
Yes
Suitable for cable diameter
8.2 - 13.3 mm
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
Yes
Number of inlets
9
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Black
Degree of protection (IP)
IP20
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
2.5 mm²
Cover model
None
Luminaire hook mounting
No
Nozzle
Pipe socket
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
