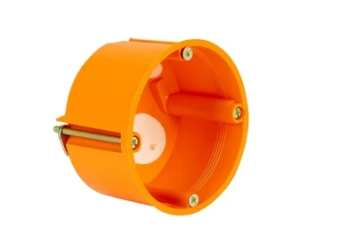

Hohlwand-Geraetedose Winddicht, 68mm, 47mm
Add to selection
General information
Ordercode YESSS
7586-0596
Product code
YEHGD47W
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
Your Esssentials
Type
Hohlwand
Hohlwand-Geraetedose Winddicht, 68mm, 47mm
Hohlwand-Geraetedose Winddicht, 68mm, 47mm
STOCK
IN STOCK
0
piece
Product description
Gerätedose- " winddicht " Ǿ 68 mm,47 mm mit Dichtungsmembranen , verpackt zu 25 Stück im Beutel mit einer Yesss Etikette auf Beutel und Karton 5 Stutzen beilegen !!! Mit J.V.K. Logo im Werkzeug
Product specifications
Mounting method
Hollow wall
Diameter
68 mm
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
Yes
Construction type
Built-in installation box (device box)
Model
Single
Equipped with
None
Length
47 mm
For number of device inserts
1
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
Yes
For tube diameter
20 mm
Housing feed-through by nozzle
Yes
Pipe locking
No
Inlet from the rear
Yes
Number of inlets
6
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Surface protection
Untreated
Colour
Orange
Degree of protection (IP)
IP30
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Luminaire hook mounting
No
Nozzle
Tunnel branch pipe
Number of adjustable device fixing lugs
2
