General information

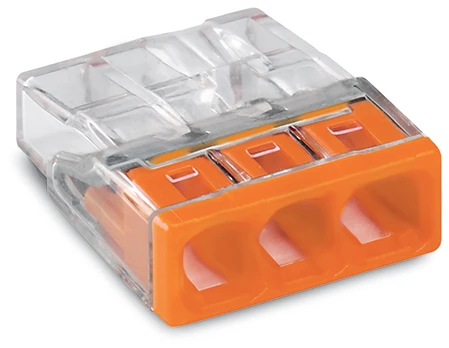

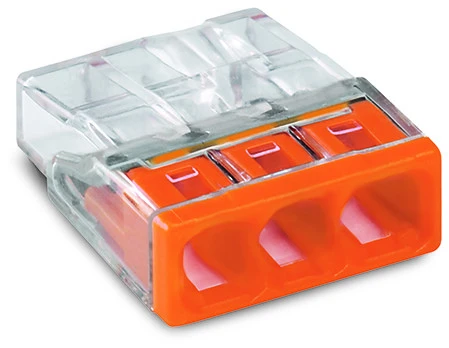

COMPACT splicing connector for solid conductors max. 2.5 mm²
COMPACT splicing connector for solid conductors max. 2.5 mm²
Ordercode YESSS
1623-5137
Product code
2273-203
EAN code
4050821027850
Product group
Push in terminal
Brand
WAGO
Serie
Installationstechnik
Type
2273-203
Product description
COMPACT splicing connector for solid conductors max. 2.5 mm² 3-conductor transparent housing orange cover Surrounding air temperature: max 60°C
Product specifications
Colour
Colourless
Nominal voltage
450 V
Nominal current
24 A
Suitable for flexible conductors
No
Suitable for multi-wire conductors
No
Transparent
Yes
Conductor cross section solid (solid, stranded)
0.5 - 2.5 mm²
Suitable for solid conductors
Yes
Min. AWG-size
16
Max. AWG-size
20
Number of clamp positions (installation side)
3
Nominal cross section (installation side)
0.5 - 2.5 mm²
Type of locking/unlocking
None
