Printed circuit board connector WAGO
Add to selection
General information
Ordercode YESSS
6689-2027
Product code
832-3626
EAN code
04055143735469
Product group
Printed circuit board connector
Brand
WAGO

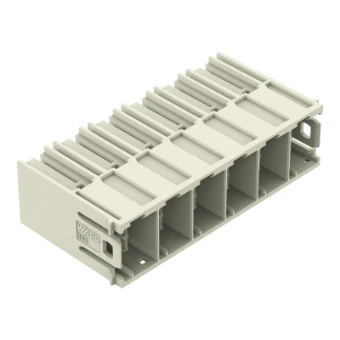

THT male header 1.2 x 1.2 mm solder pin angled
THT male header 1.2 x 1.2 mm solder pin angled light gray
Product description
THT male header 1.2 x 1.2 mm solder pin angled 100% protected against mismating Silver-plated contacts Pin spacing 10.16 mm 6-pole light gray
Product specifications
Type of connection
Flexible PCB-connector
Connector model
Free connector
Contact type
Pin
Number of poles
6
Number of plug-in contact rows
3
Modular spacing contacts
10.16 mm
Modular spacing connections
10.16 mm
Angle PCB/contact
0°/180° (horizontal)
Rated current In
76 A
Rated voltage
800 V
Rated surge voltage
8 kV
Over voltage category
III
Pollution degree
2
Material of contact surface
Silver
Type of electric connection
Soldering connection
Length pin
4 mm
Suitable for PCB thickness
1.5 mm
Material insulation body
Thermoplastic
Colour housing
Grey
Operating temperature
-60 - 120 °C
Type of PCB fastening
Connecting contact
Type of fastening
Solder
Type of banding
None
