Movement sensor/presence detector complete Theben
Add to selection
General information
Ordercode YESSS
7589-5868
Product code
2010311
EAN code
4003468200735
Product group
Movement sensor/presence detector complete
Brand
Theben
Type

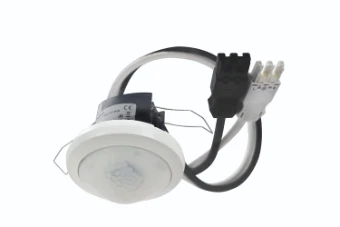

thePassa P360-101 WIN
Korridormelder (PIR), mit Kabel und WAGO WINSTA Steckern, Erfassungsbereich 30
Korridormelder (PIR), mit Kabel und WAGO WINSTA Steckern, Erfassungsbereich 30 x 5 m, 1 x Licht
Product description
Korridormelder (PIR), mit Kabel und WAGO WINSTA Steckern, Erfassungsbereich 30 x 5 m, 1 x Licht, Kabellänge 0,9 m, Erfassungsbereich umschaltbar auf 15 x 5 m (für gehende Personen), Montagehöhe bis zu 6 m, Schaltausgang Licht: 2300 W, Nachlaufzeit: 10 s-60 min, Nachlaufzeit 10 s-120 min, Einschaltverzögerung 0-10 min, Impuls-Funktion, Betrieb als Voll- oder Halbautomat umschaltbar, Teach-in-, Treppenlicht-Funktion, fernbedienbar, Lichtmessung 10-3000 Lux, einfacher Abgleich der Lichtmessung,Empfindlichkeit einstellbar
Product specifications
Model
Presence detector
Colour
White
Degree of protection (IP)
IP54
Detection angle horizontal
0 - 360 °
Max. reach frontally
15 m
Forced switch on
No
Max. reach sideways
15 m
Max. switching power
2300 W
Creep-under protection
No
Response value sensitivity adjustable
Yes
Remote operation
Yes
Constant light control
No
Scan angle
360 °
HVAC-control
No
Forced switch off
No
Animal zone
No
Networkable
Yes
Optimum mounting height
3 m
Staircase light controller
Yes
Bridging switch
No
With remote control
No
Diameter reach on floor
30 m
Suitable for wireless transmission
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Suitable for ceiling mounting
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Untreated
Connection type
Blade terminal
Surface finishing
Matt
RAL-number (similar)
9010
Transparent
No
Min. switch-on time
10 s
Voltage type
AC
Anti-bacterial treatment
No
Max. duty cycle
60 min
Response value luminosity
5 - 3000 lx
Switch-off delay
3600 s
Switching-on delay
600 s
Max. starting current
800 A
Substation input
Yes
Impact strength
IK04
Frequency
50 - 60 Hz
With alarm function
No
Suitable for C-load
Yes
Min. starting current
0.1 A
Width
110 mm
Height
83 mm
Depth
110 mm
Diameter
110 mm
Built-in width
48 mm
Built-in depth
37 mm
Built-in diameter
48 mm
Min. depth of built-in installation box
46 mm
Nominal voltage
110 - 230 V
Max. switching power LED
600 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Background monitoring
No
With acoustic sensor
No
With connection cable
Yes
Connection cable length
900 mm
