Movement sensor/presence detector complete Theben
Add to selection
General information
Ordercode YESSS
4972-0873
Product code
1030575
EAN code
4003468100745
Product group
Movement sensor/presence detector complete
Brand
Theben
Type

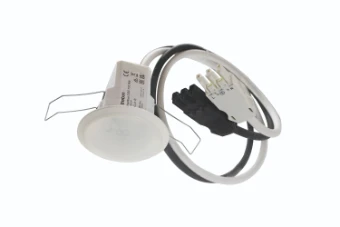

theMova S360-100 WIN
Bewegungsmelder (PIR), mit Kabel und WAGO WINSTA Steckern, Erfassungsbereich 8
Bewegungsmelder (PIR), mit Kabel und WAGO WINSTA Steckern, Erfassungsbereich 8 m, 1 x Licht
Product description
Bewegungsmelder (PIR), mit Kabel und WAGO WINSTA Steckern, Erfassungsbereich 8 m, 1 x Licht, Kabellänge 0,9 m, automatische helligkeitsabhängige Steuerung für Beleuchtung, Mischlichtmessung, Ausschaltverzögerung einstellbar, Empfindlichkeit einstellbar, Werte voreingestellt (fernparametrierbar)
Product specifications
Model
Movement sensor
Colour
White
Degree of protection (IP)
IP40
Detection angle horizontal
0 - 360 °
Max. reach frontally
4 m
Forced switch on
No
Max. reach sideways
4 m
Max. switching power
2300 W
Creep-under protection
No
Response value sensitivity adjustable
Yes
Remote operation
Yes
Constant light control
No
Scan angle
360 °
HVAC-control
No
Forced switch off
No
Animal zone
No
Networkable
No
Optimum mounting height
2.5 m
Staircase light controller
Yes
Bridging switch
No
With remote control
No
Diameter reach on floor
8 m
Suitable for wireless transmission
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Suitable for ceiling mounting
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Untreated
Connection type
Blade terminal
Surface finishing
Matt
RAL-number (similar)
9010
Transparent
No
Min. switch-on time
10 s
Voltage type
AC
Anti-bacterial treatment
No
Max. duty cycle
60 min
Response value luminosity
5 - 3000 lx
Switch-off delay
3600 s
Max. starting current
400 A
Substation input
No
Impact strength
IK04
Frequency
50 - 60 Hz
With alarm function
No
Suitable for C-load
Yes
Min. starting current
0.1 A
Width
85 mm
Height
97 mm
Depth
85 mm
Diameter
85 mm
Built-in width
60 mm
Built-in depth
74 mm
Built-in diameter
64 mm
Nominal voltage
230 - 230 V
Max. switching power LED
250 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Background monitoring
No
With acoustic sensor
No
With connection cable
Yes
Connection cable length
900 mm
Product information
