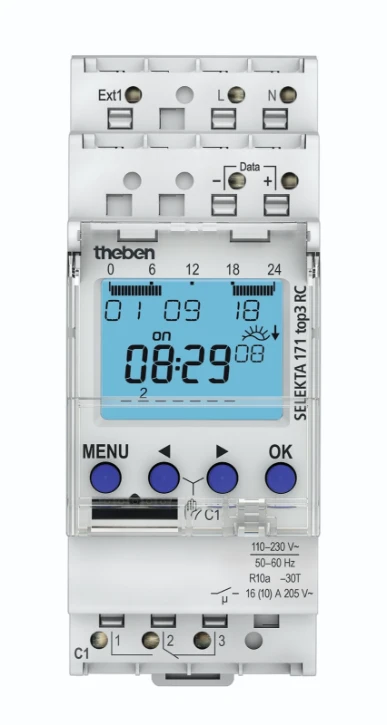

Digitale Zeitschaltuhr, Astro- und Wochenprogramm, 1 Kanal, App-Programmierung möglich, DCF

  • 6381-5374
  • |
  • 1710330
1 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

Digitale Zeitschaltuhr, Astro- und Wochenprogramm, 1 Kanal, App-Programmierung möglich, DCF Digitale Zeitschaltuhr, Astro- und Wochenprogramm, 1 Kanal, App-Programmierung möglich, DCF oder GPS
Ordercode YESSS
6381-5374
Product code
1710330
EAN code
4003468170168
Product group
Digital time switch for distribution board
Brand
Theben
Type
SELEKTA 171 top3 RC

Product description

Digitale Astro-Zeitschaltuhr für DIN-Schiene, 1 Kanal, Wochenprogramm, DCF- oder GPS-Funksteuerung mit externer Antenne möglich, Astronomische Schaltfunktion, Positionsdaten über Koordinaten oder Länder-Städteliste programmierbar, Astroimpuls, 3 verschiedene Dämmerungsbereiche einstellbar, externer Eingang, 3 Sonderprogramme, Breite 2 TE, App-Programmierung möglich, Sichere Übertragung per optionalem Bluetooth Low Energy OBELISK top3, Maximale Manipulationssicherheit, Zeitschaltprogramme können nur dann von der App in die Uhr übertragen werden, wenn der Bluetooth OBELISK top3 in der Uhr steckt, 100 % kompatibel zu top2, 600 Watt LED-Leistung, 800 Ampere/200 Mikrosekunden Einschaltstrom, 0, 8 Watt Stand-by Leistung, DuoFix Steckklemmen, Gangreserve und programmierte Sommer-/Winterzeitumstellung, OBELISK-Schnittstelle für PC-Programmierung

Product specifications

Mounting method
DIN rail
Width in number of modular spacings
2
Number of channels
1
Number of memory locations
84
24 h program
Yes
Annual program
No
Astro program
Yes
Weekly program
Yes
Nominal switching current at 250 V AC
16 A
Supply voltage
110 - 240 V
Voltage type (supply voltage)
AC
Accuracy per day
0.25 s
Automatic switching summer/winter time
Yes
Radio-controlled
Yes
Holiday program
Yes
Impulse program
No
Cycle program
No
Text guidance in display
Yes
Frequency supply voltage
50 - 60 Hz
Autonomy in years
10
60 min program
Yes
Hour meter
Yes
Mains synchronous
No
Quartz controlled
Yes
Suitable for manual operation
Yes
External push button input
Yes
Switching preselection
Yes
Potential free switch contact
Yes
Degree of protection (IP)
IP20

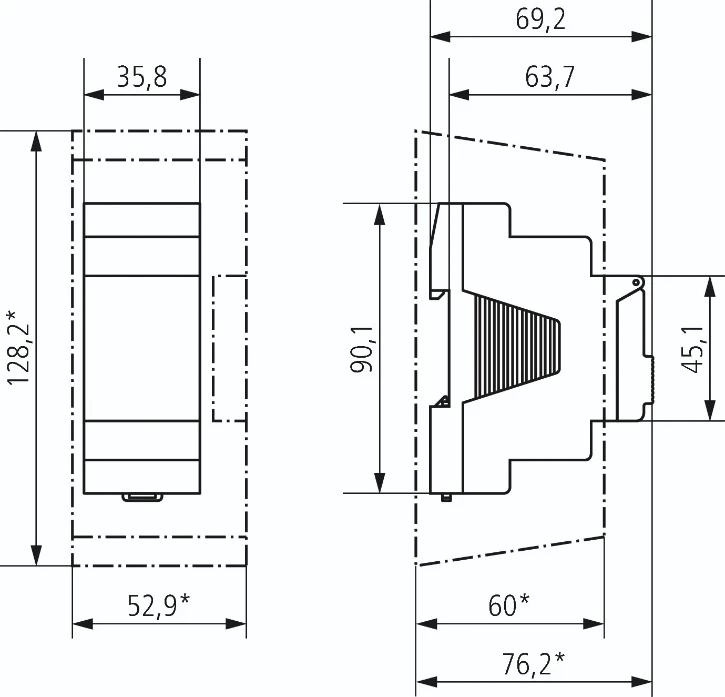

Width
35 mm
Height
128 mm
Depth
60 mm
External programming
Yes
With memory card
No
Radio-controlled (DCF77)
Yes
GPS (global positioning system)
Yes
Contact type
Change-over contact (NO/NC)
Number of contacts
1
Output signal
Other
Max. switching power LED
600 W
Manufacturer's website

Recommended products

Accessories/spare parts for time switches Theben

GNSS-Antenne für Zeitsynchronisation und Positionsbestimmung

€ 204,46 /

€ 215,22 Gross price

0 | 6988-3612

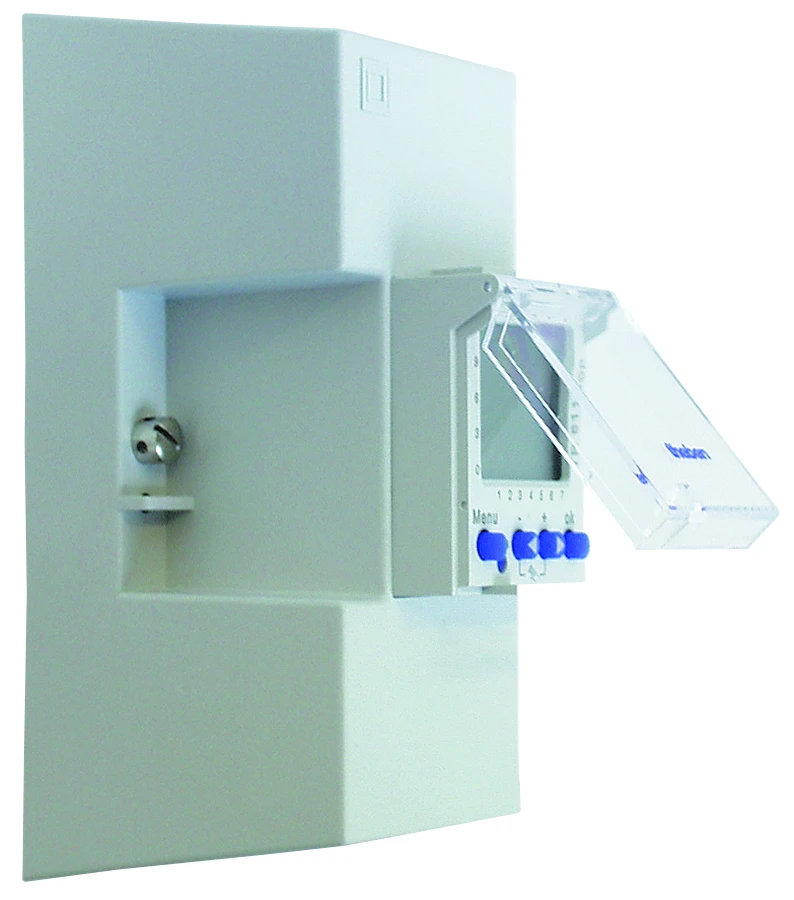

Surface mounting set for distribution board Theben

Aufbauset für Reiheneinbaugeräte 2 TLE

€ 5,62 /

€ 6,04 Gross price

0 | 0231-3634
DCF-antenna for time switches Theben

Antenne top2 RC für Wandaufbau (Antenne top2 RC)

€ 156,85 /

€ 165,10 Gross price

2 | 0942-2563

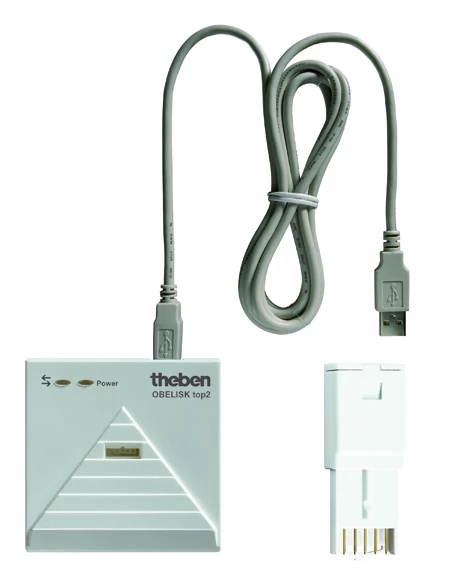

PC-programming set for time switch for bus system Theben
