Downlight/spot/floodlight STEINEL
Add to selection
General information
Ordercode YESSS
6873-8332
Product code
058647
EAN code
4007841058647
Product group
Downlight/spot/floodlight
Brand
STEINEL
Type

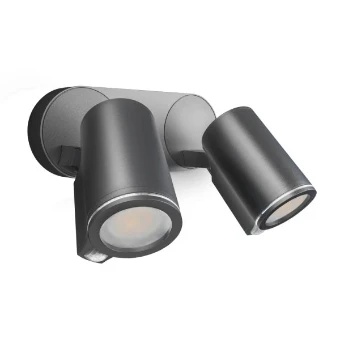

Spot DUO Sensor
Sensor-LED-Strahler 14.95 W, 1024 lm, IP44 Mit Bewegungsmelder
Sensor-LED-Strahler 14.95 W, 1024 lm, IP44 Mit Bewegungsmelder
Product description
Leuchtstarkes LED-Doppel. Wandspot DUO Sensor mit zwei schwenkbaren Strahlerköpfen (180° horizontal, 90° vertikal) mit je 90° Infrarot-Sensor (10 m Reichweite). 2x 520 lm bei 2x 7W für optimale Ausleuchtung rund ums Haus. Mit Zeiteinstellung (8 s - 35 min) und Dämmerungseinstellung (2-1000 Lux). Mehrere Spots per Kabel vernetzbar. 2x GU-10-LED Leuchtmittel inklusive.
Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
Yes
Adjustability
Rotating and swivelling
With light source
Yes
Suitable for low voltage cable system
No
With light sensor
Yes
Reflector
None
Light distribution
Symmetric
Suitable for number of light sources
2
Lamp holder
GU10
Type of control gear
Not required
Suitable for lamp power
14.95 - 14.95 W
With control gear
Yes
Max. system power
14.95 W
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Material cover
Plastic, transparent
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Width
247 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
98 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Impact strength
IK03
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
None
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Type of wiring
Suitable for loop-through wiring
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM5
Suitable for wall mounting
Yes
