Sensor-LED-Innenleuchte 9.3 W, 918 lm, IP44 Mit Bewegungsmelder
- 5713-2352
- |
- 035105
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Sensor-LED-Innenleuchte 9.3 W, 918 lm, IP44 Mit Bewegungsmelder
Sensor-LED-Innenleuchte 9.3 W, 918 lm, IP44 Mit Bewegungsmelder
Ordercode YESSS
5713-2352
Product code
035105
EAN code
4007841035105
Product group
Ceiling-/wall luminaire
Brand
STEINEL
Type
RS 16 S Glas
Product description

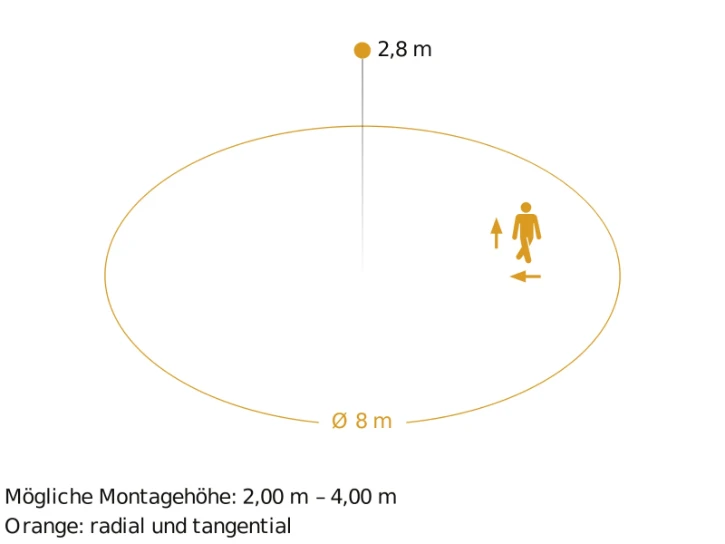

Evolution eines Klassikers. Sensor Innenleuchte RS 16 S, ideal für Flure, Dielen, Treppenhäuser und Bäder. Integrierter Hochfrequenz-Sensor mit 360° Erfassung, ø 3-8 m Reichweite. Neuste LED-Technik, 918 lm bei einem Verbrauch von nur 9,3 W. Zeit- und Dämmerungsschwelle einstellbar.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
220 - 240 V
Nominal current
46.5 - 46.5 mA
Colour temperature
3000 - 3000 K
Housing material
Glass
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Glass opal
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming GPRS
No
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct/indirect
Dimming phase cut-on (leading edge)
No
Length
96 mm
Dimming programmable
Yes
Dimming RF
No
Height/depth
96 mm
Outer diameter
273 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
Yes
Light distributor
None
With light sensor
Yes
Protection class according to IEC 61140
II
Impact strength
IK03
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Energy efficiency class of the provided exchangeable built-in lamp
A++
Covering of the luminaire with thermally insulating material possible
No
Highest energy efficiency class of the exchangeable lamp
A++
Lowest energy efficiency class of the exchangeable lamp
A
Max. system power
9.3 W
With air slots
No
Voltage type
AC
Colour of light
White
Rated ambient temperature according to IEC 62722-2-1
-10 - 40 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
9.3 - 9.3 W
Power factor
0.92
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Conductor cross section
6 mm²
Connection type
Other
Colour consistency (McAdam ellipse)
SDCM3
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for wall mounting
Yes
Compatible with Casambi
No
Dimmable
Yes
Containing product according to 2019/2020/EU
Yes
