Movement sensor for bus system STEINEL
Add to selection
General information
Ordercode YESSS
6809-8339
Product code
058500
EAN code
4007841058500
Product group
Movement sensor for bus system
Brand
STEINEL
Type

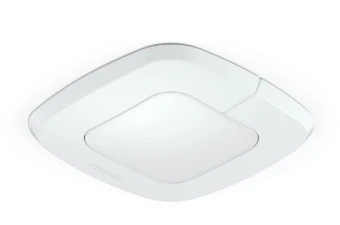

IR Quattro SLIM XS 4m KNX - eckig
Präsenzmelder Passiv Infrarot, Deckeneinbau, IP20, 360° Reichweite max: 4 x
Präsenzmelder Passiv Infrarot, Deckeneinbau, IP20, 360° Reichweite max: 4 x 4 m (16 m²)
Product description
Auffallend. Unauffällig. IR Quattro SLIM XS KNX, der extra flache Präsenzmelder im Unterputzdosen-Format. Passt in jede handelsübliche Unterputzdose. Nur 6 mm Aufbauhöhe. Hochpräziser 360°-Infrarot-Sensor mit weltweit einzigartiger Retina-Linse und 16 qm quadratischem Präsenzbereich (4 x 4 m). Einstellung per Fernbedienung oder Smart Remote. Runde Blende liegt zusätzlich bei.
Product specifications
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequency bidirectional
No
Mounting method
Other
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Colour
White
RAL-number (similar)
9010
With bus connection
Yes
Transparent
No
Substation input
No
Creep-under protection
Yes
Animal zone
No
Operation mode switch
Yes
Staircase light controller
No
Response value luminosity adjustable
No
Teach-function for response value luminosity
Yes
Switch-off delay self-learning
Yes
Optimum mounting height
2.8 m
Max. reach sideways
2 m
Max. reach frontally
2 m
Diameter reach on floor
4 m
Detection angle vertical
71 - 71 °
Detection angle horizontal
360 - 360 °
Number of channels
4
Min. switch-on time
60 s
Max. duty cycle
255 min
Min. depth of built-in installation box
66 mm
