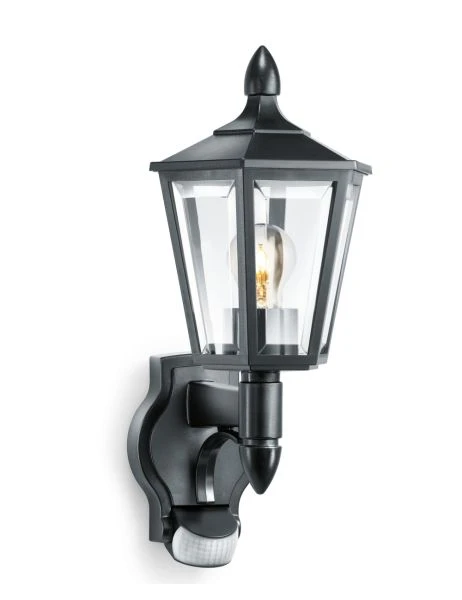

Sensor-Außenleuchte L 15 S schwarz, 60 W, IP44 Mit Bewegungsmelder
Add to selection
General information
Ordercode YESSS
2114-3824
Product code
617813
EAN code
4007841617813
Product group
Ceiling-/wall luminaire
Brand
STEINEL
Serie
E27 Außenleuchten
Type
L 15 S schwarz
Sensor-Außenleuchte L 15 S schwarz, 60 W, IP44 Mit Bewegungsmelder
Sensor-Außenleuchte L 15 S schwarz, 60 W, IP44 Mit Bewegungsmelder
STOCK
IN STOCK
0
piece
Product description

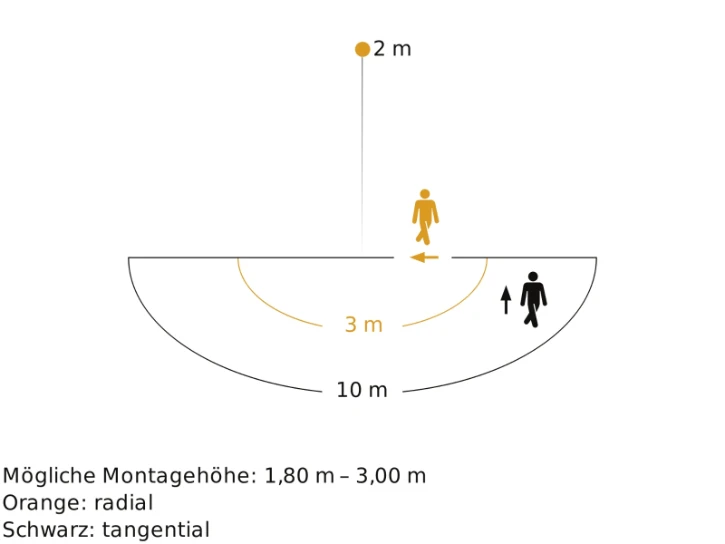

Die gute alte Zeit. Klassische Sensor-Außenleuchte L 15 S, ideal für Hausfronten und Eingänge, 180° Erfassungswinkel, Reichweite bis 10 m, Zeit- und Dämmerungsschwelle einstellbar, Sensor vertikal um 90° schwenkbar zur exakten Anpassung an den Erfassungsbereich.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
Other
With light source
No
Lamp holder
E27
Suitable for number of light sources
1
Type of control gear
Not required
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
230 - 240 V
Housing material
Plastic
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic, transparent
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming GPRS
No
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No

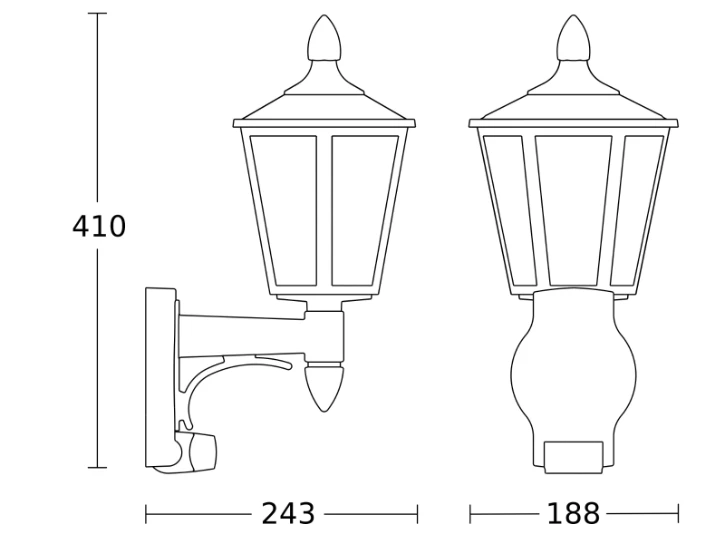

Length
243 mm
Dimming programmable
No
Width
188 mm
Dimming RF
No
Height/depth
410 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
Yes
Light distributor
None
With light sensor
Yes
Protection class according to IEC 61140
II
Impact strength
IK03
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Energy efficiency class of the provided exchangeable built-in lamp
A++
Covering of the luminaire with thermally insulating material possible
No
Highest energy efficiency class of the exchangeable lamp
A++
Lowest energy efficiency class of the exchangeable lamp
A
Max. system power
60 W
With air slots
No
Voltage type
AC
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
60 - 60 W
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section
2.5 mm²
Connection type
Other
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for wall mounting
Yes
Compatible with Casambi
No
Dimmable
Yes
