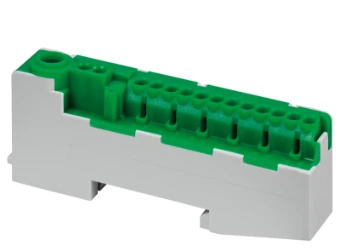

Single- and multi-pole terminal strip Spelsberg
Add to selection
General information
Ordercode YESSS
6468-8770
Product code
79032201
EAN code
4013902612154
Product group
Single- and multi-pole terminal strip
Brand
Spelsberg
Product specifications
Material insulation body
Thermoplastic
Mounting method
DIN rail (top hat rail) 35 mm
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 16 mm²
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Rated current In
80 A
Rated voltage
500 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Spring clamp connection
Number of poles
1
Number of clamp positions per pole
15
Operating temperature
40 - 40 °C
Inflammability class of insulation material according to with UL94
V2
Closing plate required
No
Colour
Green
Transparent
No
Halogen free
Yes
Width
18 mm
Height
90 mm
Depth
35 mm
