Junction box, Type of protection IP66/IP67/IP69, max. 4², IK09, Protection
- 7589-2796
- |
- 40402001
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Product description

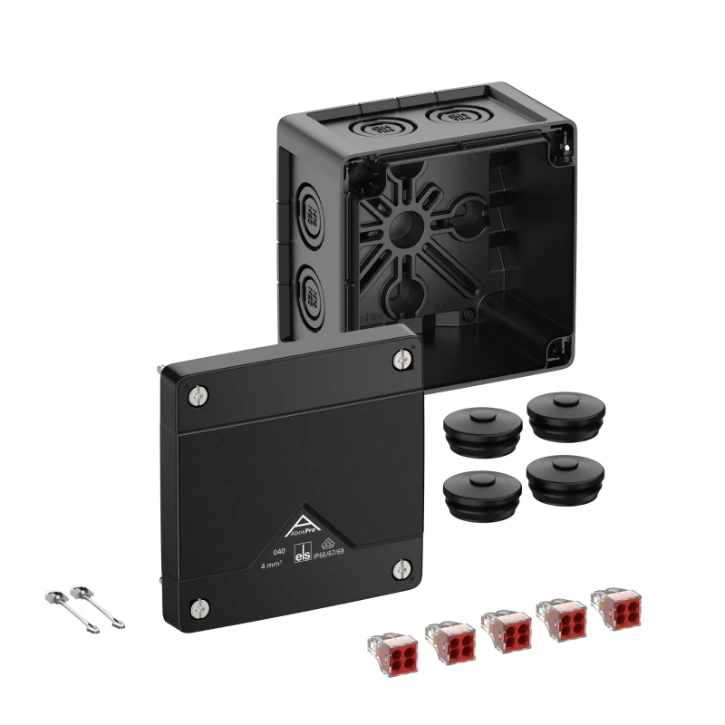

Junction box, with protection class IP66/IP67/IP69, Nominal cross-section 4mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), Push-out membranes, M16/M20/M25, (1 Rear, 7 Side), Internal fastening points, for installations in the industrial environment and unprotected outside areas, black, Ui=400 V AC, In=32 Ampere, with 5 screwless 4-wire terminal blocks, Wago 773-604, max. nominal cross-section in accordance with DIN EN 60998: 4mm², clampable cross-sections per pin: 4 x 1.5-4.0mm² rigid Cu/Al (follow installation instructions)
Dimensions: 102 x 102 x 70mm
Accessories supplied: 4 Double membrane seals IP66 M25 sealing area 9-17mm, cover retainer
