General information

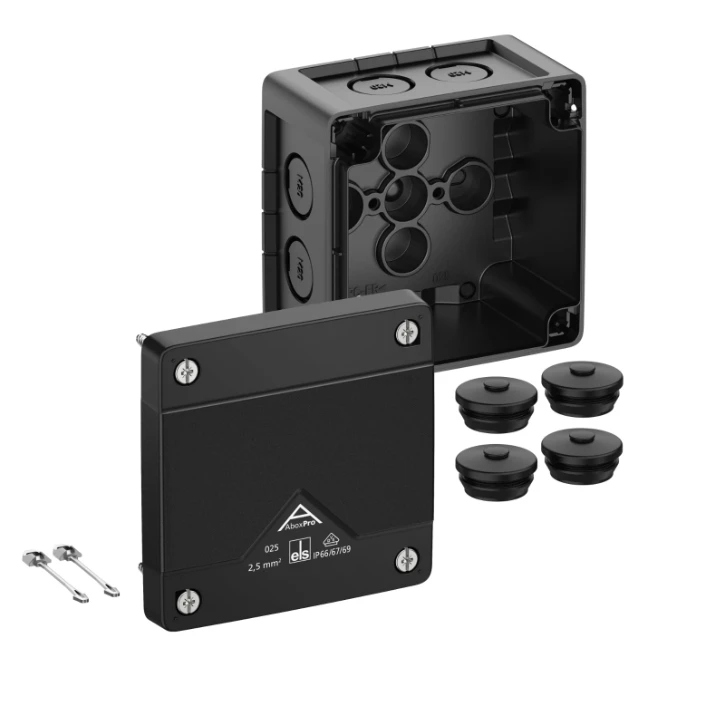

Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection
Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, VDE, Halogen free
Ordercode YESSS
7589-2785
Product code
40200001
EAN code
4013902662043
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
Spelsberg
Serie
Abzweigkästen
Type
Abox Pro 025-L/sw
Product description
Junction box, with protection class IP66/IP67/IP69, Nominal cross-section 2.5mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), Push-out membranes, M16/M20, (1 Rear, 7 Side), Internal fastening points, for installations in the industrial environment and unprotected outside areas, black, Ui=1000 V AC, without terminals
Dimensions: 92 x 92 x 60mm
Accessories supplied: 4 Double membrane seals IP66 M20 sealing area 7-13mm, cover retainer
Product specifications
Mounting method
Wall-/ceiling mounting
Degree of protection (IP)
IP66/IP67/IP69
Material
Plastic
Shape
Square
Max. conductor cross section
2.5 mm²
Mounting in the soil
No
Equipped with
None
Mounting under water
No
Halogen free
Yes
Length
92 mm
Width
92 mm
Depth
60 mm
Sealable
Yes
Inlet from the rear
Yes
Connectable
No
Number of inlets
8
Type of housing feed-through
Preembossing
Surface protection
Untreated
Colour
Black
Cover attachment
Screwed
Degree of protection (NEMA)
Other
Cover model
Other
Rated insulation voltage Ui
1000 V
Castable
No
Transparent cover
No
Casting compound included
No
Circuit integrity
None
With screening
No
Weatherproof
Yes
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Working temperature
-35 - 80 °C
Model
Junction box
With strain relief
No
Number of cable glands included
0
Number of poles
0
Number of clamp positions per pole
0
RAL-number (similar)
9005
Outgoing connections with connectors for plug-in building installation
No
