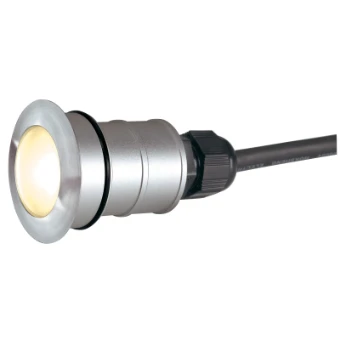

POWER TRAIL-LITE®, Outdoor Bodeneinbauleuchte, LED, 3000 K, IP67, rund, edelstahl
- 0639-3130
- |
- 228332
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
POWER TRAIL-LITE®, Outdoor Bodeneinbauleuchte, LED, 3000 K, IP67, rund, edelstahl
POWER TRAIL-LITE®, Outdoor Bodeneinbauleuchte, LED, 3000 K, IP67, rund, edelstahl 316
Ordercode YESSS
0639-3130
Product code
228332
EAN code
4024163112093
Product group
In-ground luminaire
Brand
SLV
Serie
POWER TRAIL-LITE
Type
POWER TRAIL-LITE® EL rund 3000K IP67
Product description
Die mit einer leistungsstarken PowerLED bestückte Boden- und Wandeinbauleuchte POWER TRAIL-LITE 42 kann durch die Schutzart IP67 auch im Außenbereich verwendet werden. Als Alternativen sind andere Lichtfarben sowie runde und quadratische Abdeckungen verfügbar. Zur einfachen Montage befindet sich eine Einbauhülse im Lieferumfang. Der elektrische Anschluss erfolgt durch die Zuleitung an einem separat erhältlichen 350 mA LED Treiber. Diese Leuchte enthält eingebaute LED-Lampen.
Product specifications
Lamp type
LED not exchangeable
With control gear
Yes
Housing colour
Stainless steel
Lamp holder
Other
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
Voltage type
DC
Nominal current
350 - 350 mA
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Electrical connection with connector system
No
Dimming potentiometer (integrated)
No
Adjustable
No
Dimming LineSwitch
No
Light distribution
Symmetric
Dimming manufacturer's proprietary system
No
Length
65 mm
Dimming mains voltage modulation
No
Width
41 mm
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Outer diameter
41 mm
Dimming programmable
No
Built-in length
40 mm
Dimming RF
No
Built-in width
40 mm
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Built-in diameter
40 mm
Dimming Zigbee
No
Dimming with push-button
No
Over rollable
No
Max. surface temperature
30 °C
Protection class according to IEC 61140
III
Light distributor
Other
Degree of protection (IP)
IP67
With light source
Yes
Colour of light
White
Beam angle
41-80° - Wide beam
Colour temperature
3000 - 3000 K
Colour rendering index CRI
90-100
Rated lifetime L70/B50 at 25 °C
30000 h
Suitable for lamp power
1 - 1 W
Max. system power
1 W
Height/depth
41 mm
Built-in height/depth
90 mm
Type of wiring
Ending
Housing material
Steel
Housing material quality
Stainless steel 316 (1.4401)
Exchangeable control gear
Yes
Impact strength
IK08
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Energy efficiency class of the light source according to EU regulation 2019/2015
G
Operation by Bluetooth
No
Compatible with Casambi
No
Luminaire efficacy
45 lm/W
