General information

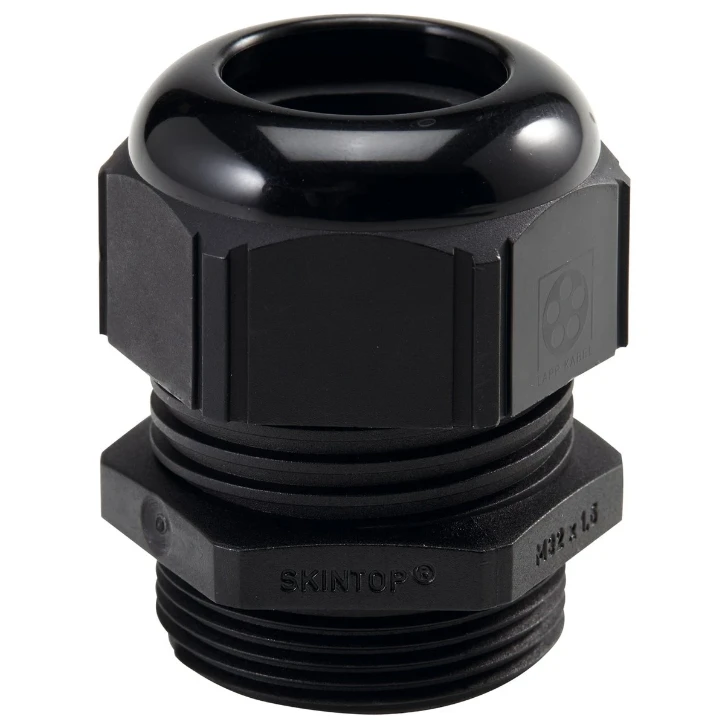

SKINTOP® ST NPT 3/4IN RAL 9005 BK
SKINTOP® ST NPT 3/4IN RAL 9005 BK
Ordercode YESSS
0202-1827
Product code
53016250
EAN code
4044773159424
Product group
Cable gland
Brand
SKINTOP®
Type
Kabelverschraubung
Product description
Überall wo viele Kabel und Leitungen platzsparend in ein Gehäuse eingeführt werden müssen. Maschinen- und Apparatebau. Automatisierungstechnik. Geräte. Gehäuse. Überall wo viele Kabel und Leitungen platzsparend in ein Gehäuse eingeführt werden müssen. Maschinen- und Apparatebau. Automatisierungstechnik. Geräte. Gehäuse.
Product specifications
Material quality
Polyamide (PA)
Thread type
NPT
Suitable for cable diameter
13 - 18 mm
With strain relief
Yes
Material
Plastic
Degree of protection (IP)
IP68
Shock resistant
Yes
Halogen free
No
With locknut
No
Model
Straight
Bend radius protection/trumpet flare
No
Thread length
15 mm
Nominal thread size inch/gas pipe thread
3/4 inch
Pitch thread
1.81 mm
Wrench width
33 mm
Hexagon angular dimension
36.2 mm
RAL-number
9005
Surface protection
Untreated
Glass-fibre reinforced
No
Colour
Black
Snapping in opening
No
Multi seal area
No
Flat cable coupling
No
Type of sealing
Sealing ring
Separable screw gland
No
Working temperature
-40 - 100 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
