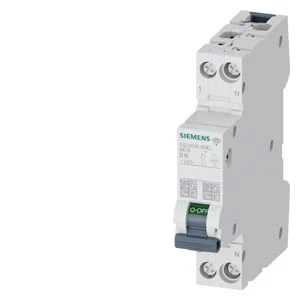

Miniature circuit breaker (MCB) Siemens
Add to selection
General information
Ordercode YESSS
7533-0590
Product code
5SL60166MC
EAN code
4001869578408
Product group
Miniature circuit breaker (MCB)
Brand
Siemens
Product specifications
Release characteristic
B
Rated current
16 A
Number of poles (total)
2
Width in number of modular spacings
1
Rated voltage
230 V
Rated insulation voltage Ui
250 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Built-in depth
70 mm
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
Yes
Pollution degree
2
Ambient temperature during operating
-25 - 60 °C
Connectable conductor cross section multi-wired
0.75 - 16 mm²
Connectable conductor cross section solid-core
0.75 - 16 mm²
Flush-mounted installation
No
Explosion-proof
No
