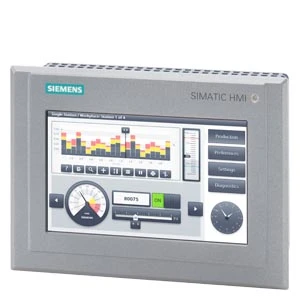

Graphic panel Siemens
Add to selection
General information
Ordercode YESSS
5377-2607
Product code
6AV21240GC130AX0
EAN code
4047623405986
Product group
Graphic panel
Brand
Siemens
Product specifications
With numeric keyboard
Yes
With alpha numeric keyboard
Yes
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
2
With colour display
Yes
Supply voltage DC
19.2 - 28.8 V
Voltage type of supply voltage
DC
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
1
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
IO link master
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Number of colours of the display
16777216
Useful project memory/user memory
12000 KByte
Number of grey-scales/blue-scales of display
0
Number of function buttons, programmable
0
Number of buttons with LED
0
Number of system buttons
0
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
Number of password levels
50
With printer output
Yes
Number of online languages
32
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP66
Operating temperature
-30 - 60 °C
Rail mounting possible
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front
214 mm
Height of the front
158 mm
Built-in depth
64.6 mm
Screen diagonal
7 inch
Number of pixels, horizontal
800
Number of pixels, vertical
480
