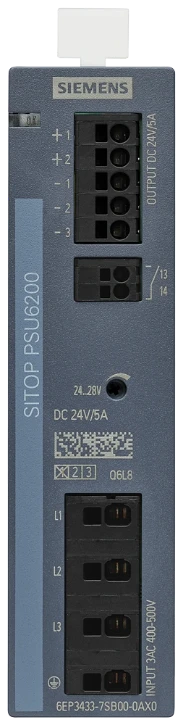

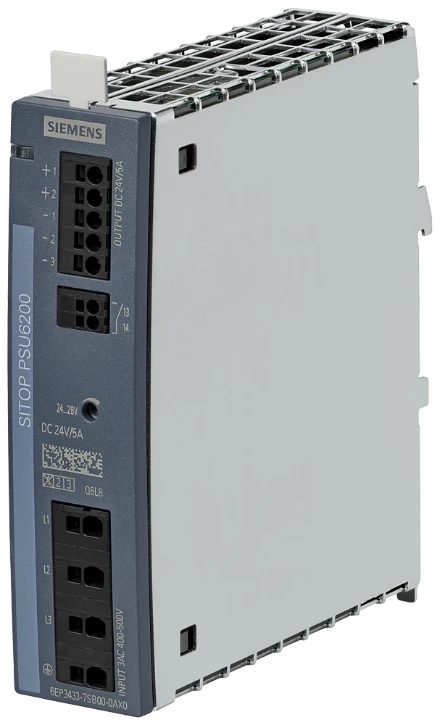

Stromversorgung SITOP PSU6200, 3-phasig DC 24 V/5 A

  • 7041-5173
  • |
  • 6EP34337SB000AX0
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

Stromversorgung SITOP PSU6200, 3-phasig DC 24 V/5 A Stromversorgung SITOP PSU6200, 3-phasig DC 24 V/5 A
Ordercode YESSS
7041-5173
Product code
6EP34337SB000AX0
EAN code
4025515155300
Product group
DC-power supply
Brand
Siemens
Serie
SITOP PSU6200
Type
6EP3433-7SB00-0AX0

Product description

SITOP PSU6200 24 V/5 A Geregelte Stromversorgung Eingang: AC 400 - 500 V Ausgang: DC 24 V/5 A Die 3-phasigen SITOP PSU6200 sind Standard-Stromversorgungen für hohe technische Anforderungen. Sie eignen sich für vielfältige Anwendungen, vor allem im industriellen Umfeld wie zum Beispiel dem Serienmaschinenbau. Das wertige Design der PSU6200 Familie verbunden mit den Push-In-Klemmen steht für effektive Verdrahtung. Die lange Lebensdauer und die absolute Zuverlässigkeit machen die Module dieser Produktfamilie zu einem Allrounder. Der hohe Wirkungsgrad über den gesamten Lastbereich sowie minimale Leerlaufverluste garantieren einen ressourcenschonenden Energieverbrauch. Zur weiteren Erhöhung der 24 V-Verfügbarkeit können die SITOP PSU6200 Netzteile mit DC-USV-, Redundanz- und Selektivitätsmodulen kombiniert werden. Egal welche Branche, egal welche Anforderung, Siemens bietet zuverlässige und effiziente Stromversorgungen für jede Anlage.

Product specifications

Voltage type (supply voltage)
AC/DC
Secondary voltage adjustable
Yes
Power output
120 W
Output voltage stabilized
Yes
Stabilized
Yes
Short-circuit-proof
Yes
1st secondary output voltage
24 - 24 V
Max. output current 1
5 A
Nominal value output voltage 1
24 V
Degree of protection (IP)
IP20
Nominal value output current 1
5 A
Rated supply voltage DC
500 - 550 V
Type of electric connection
Spring clamp connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Built-in height
225 mm
Direct mounting possible
No
Width
35 mm
Height
135 mm
Depth
125 mm
Built-in width
35 mm
Suitable for wall mounting
No
Manufacturer's website

Recommended products

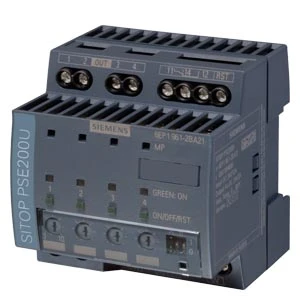

Current monitoring relay Siemens SITOP PSE200U
