General information

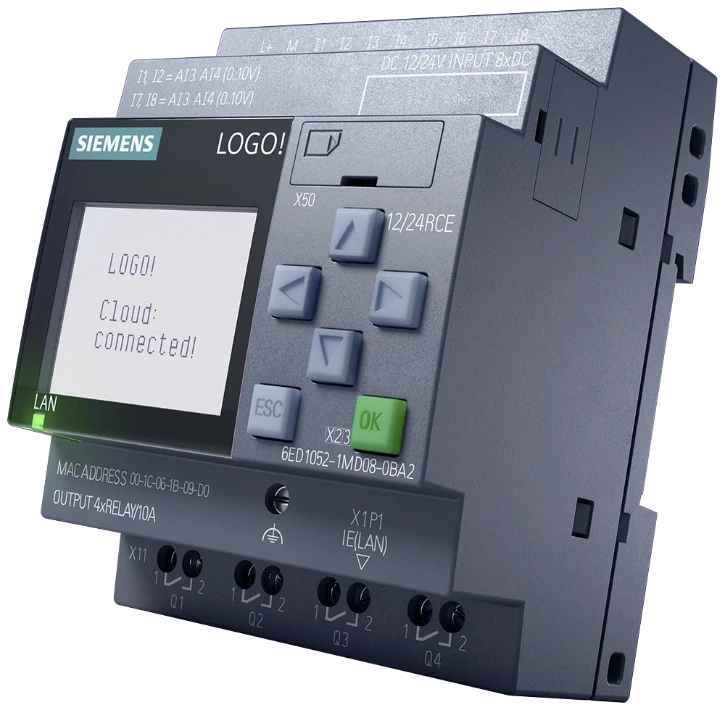

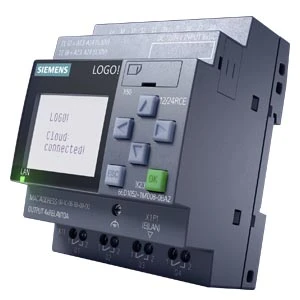

LOGO! 12/24RCE LOGO! 12/24RCE
Ordercode YESSS
7590-9231
Product code
6ED10521MD080BA2
EAN code
4034106034474
Product group
Logic module
Brand
Siemens
Serie
12/24RCE
Type
6ED1052-1MD08-0BA2

Product description

Produktbeschreibung

    Logo! 12/24RCE

    Die LOGO! 12/24RCE ist ein vielseitiges Logikmodul mit integrierten Kommunikationsfunktionen, das die Automatisierung und Steuerung von Gebäuden und industriellen Anwendungen vereinfacht.

    Technische Details:

    • Spannungsversorgung: 12/DC 24V
    • Relais: 8DE (4AE)/4DA
    • Modular erweiterbar auf bis zu 24DI / 20 DQ (8 AI / 8 AQ)
    • Ethernet-Schnittstelle zur Kommunikation mit bis zu neun LOGO! 8 Modulen oder SIMATIC S7 Systemen
    • Integrierter Webserver für die Überwachung und Steuerung über WLAN bzw. Internet
    • Unterstützung von Cloud-Anbindung und MQTT in allen LOGO! 8.4 Grundgeräten
    • Einbaubreite von 72 mm
    • Bis zu 10 A Bemessungsstrom

    Kunden Vorteile:

    • Einfaches Erstellen und Simulieren von Schaltprogrammen am PC
    • Benutzerdefinierte Webseiten ohne HTML-Kenntnisse gestaltbar
    • Integration von GSM- und GPS-Kommunikation über Zusatzmodule
    • Erweiterbar mit externem Textdisplay für aussagekräftige Meldungen
    • Flexibilität durch verschiedene Modelle mit und ohne Anzeigen
    • Diverse LOGO! Powermodule zur Energiebereitstellung verfügbar

Product specifications

Switching current
10 A
Number of analogue inputs
4
Number of digital inputs
8
Supply voltage DC
10.8 - 28.8 V
Number of analogue outputs
0
Number of digital outputs
4
With relay output
Yes
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Mobile communication standard GPRS
No
Redundancy
No
Mobile communication standard 2G (GSM)
No
With display
Yes
Mobile communication standard 3G (UMTS)
No
Degree of protection (IP)
IP20
Basic device
Yes
Expandable
Yes
Expansion device
No
With time switch clock
Yes
Suitable for rail mounting
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
Yes
Rack-assembly possible
No
Suitable for safety functions
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
71.5 mm
Height
90 mm
Depth
60 mm
Supporting protocol for EtherCAT
No
