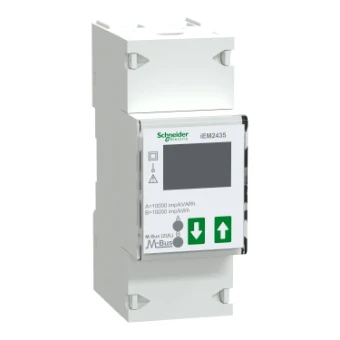

Kilowatt-hour meter Schneider
Add to selection
General information
Ordercode YESSS
7587-7339
Product code
A9MEM2435
EAN code
3606482187160
Product group
Kilowatt-hour meter
Brand
Schneider
Product specifications
Model
Direct measurement
Mounting method
DRA (DIN-rail adapter)
Energy type
Effective power and blind power
Tariff type
Two-tariff
Type of meter
Electronic
Nominal current (In)
100 A
Max. current (Imax)
100 A
Nominal voltage (Un) N-L
195 - 253 V
Frequency
45 - 65 Hz
Accuracy class
B
Pole type
Single phase
Suitable for
Purchase
Tariff control
External
Measurement type load profile
No
Escapement mechanism
No
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
0.01 - 10000 Imp/kWh (kvarh)
Type of indication
Digital
Width in number of modular spacings
2
Width
35.8 mm
Depth
63 mm
Height
96.71 mm
Type of interface
M-bus (wired)
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Degree of protection (NEMA)
4X
Product information
