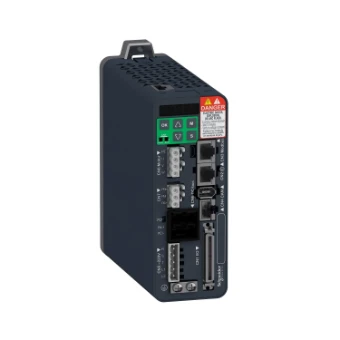

Frequency converter =< 1 kV Schneider
Add to selection
General information
Ordercode YESSS
6829-2847
Product code
LXM28EUA5M3X
EAN code
3606481167248
Product group
Frequency converter =< 1 kV
Brand
Schneider
Product specifications
Mains voltage
220 - 220 V
Mains frequency
50/60 Hz
Number of phases input
1
Number of phases output
3
Max. output frequency
16 Hz
Max. output voltage
240 V
Nominal output current I2N
0.64 A
Max. output at quadratic load at rated output voltage
0.05 kW
Max. output at linear load at rated output voltage
0.05 kW
With control element
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Number of digital outputs
4
Supporting protocol for TCP/IP
No
Number of digital inputs
10
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
2
Supporting protocol for BACnet
No
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
With PC connection
No
Integrated breaking resistance
Yes
4-quadrant operation possible
No
Type of converter
Direct converter
Degree of protection (IP)
IP20
Height
150 mm
Width
55 mm
Depth
146 mm
Relative symmetric net frequency tolerance
5 %
Relative symmetric net voltage tolerance
10 %
Product information
