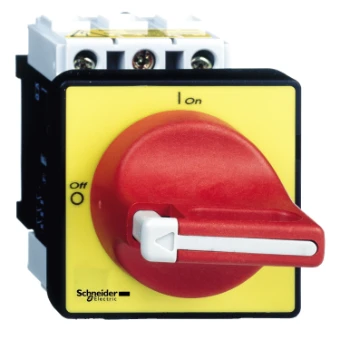

Switch disconnector Schneider
Add to selection
General information
Ordercode YESSS
0172-7584
Product code
VCD01
EAN code
3389110724868
Product group
Switch disconnector
Brand
Schneider
Product specifications
Rated permanent current Iu
20 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
5.5 kW
Number of switches
1
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
No
Version as safety switch
No
Rated permanent current at AC-21, 400 V
20 A
Version as emergency stop installation
Yes
Rated permanent current at AC-23, 400 V
11 A
Rated operation power at AC-3, 400 V
4 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
0.3 kA
Conditioned rated short-circuit current Iq
10 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Red
With pre-assembled cabling
No
Width
60 mm
Height
74 mm
Depth
121 mm
