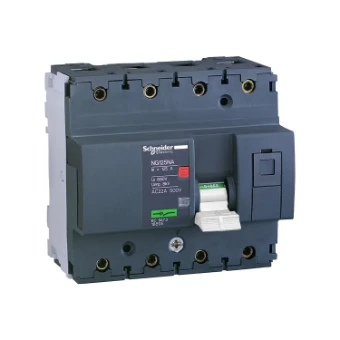

Switch disconnector Schneider
Add to selection
General information
Ordercode YESSS
0164-1601
Product code
18896
EAN code
3303430188964
Product group
Switch disconnector
Brand
Schneider
Product specifications
Rated permanent current Iu
125 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Number of switches
4
Number of poles
4
Version as main switch
Yes
Rated operating voltage
500 - 500 V
Version as maintenance-/service switch
No
Version as safety switch
Yes
Version as emergency stop installation
No
Max. rated operation voltage Ue AC
500 V
Rated short-time withstand current lcw
1.5 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Toggle
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Colour control element
Black
With pre-assembled cabling
No
Width
108 mm
Height
103 mm
Depth
81 mm
Width in number of modular spacings
6
