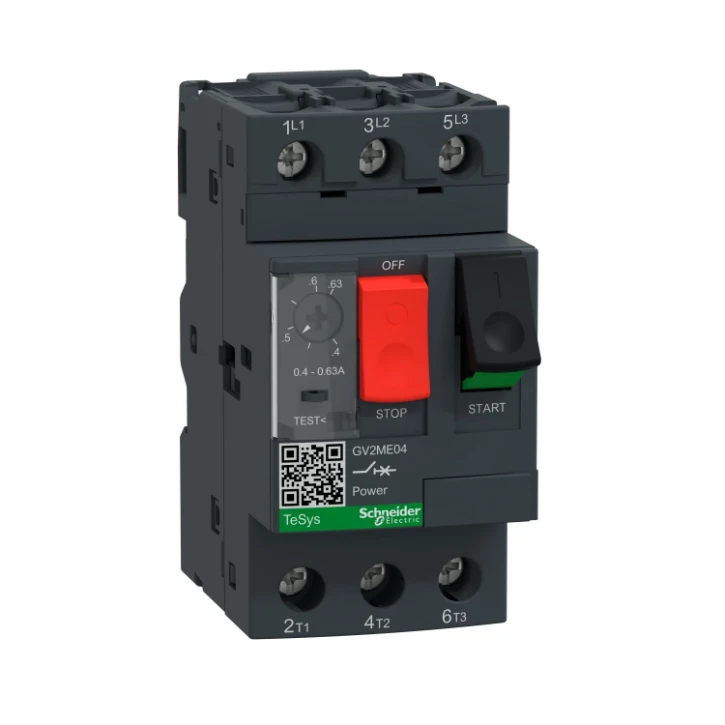

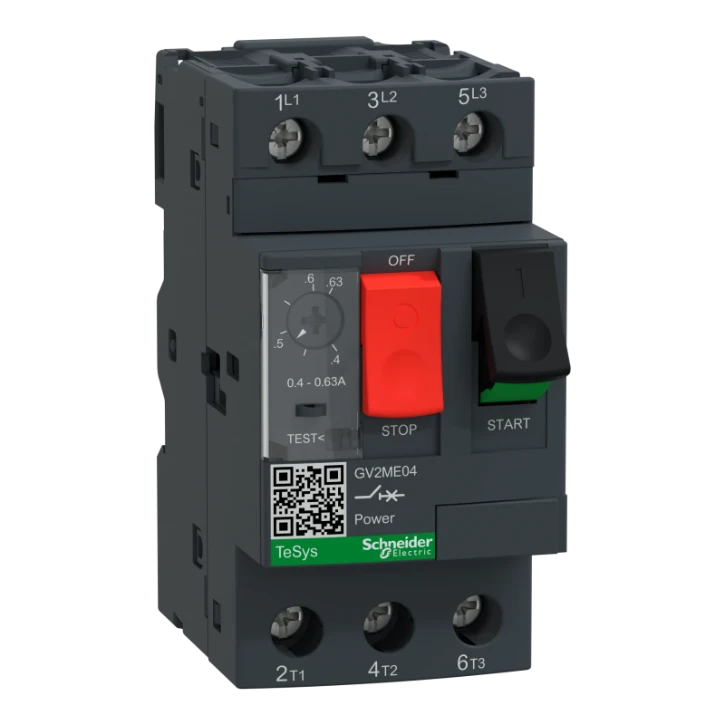

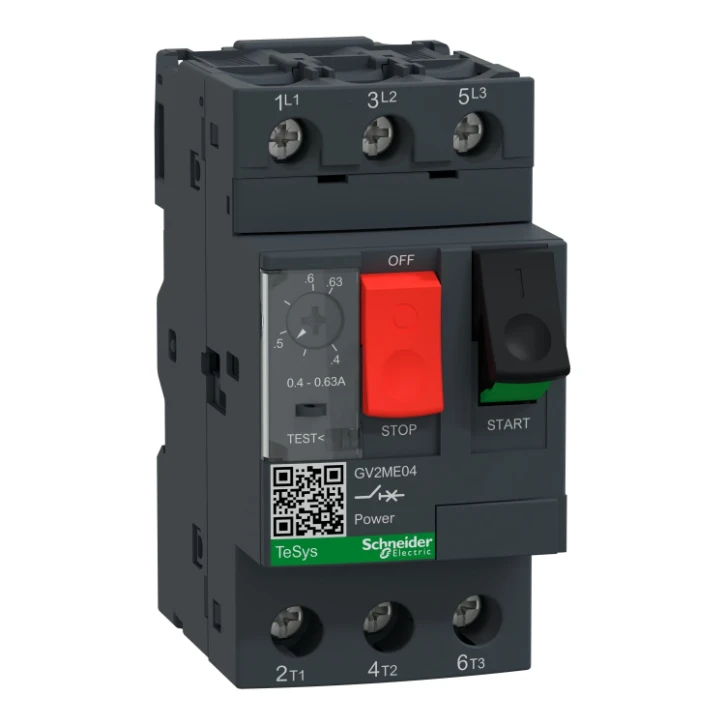

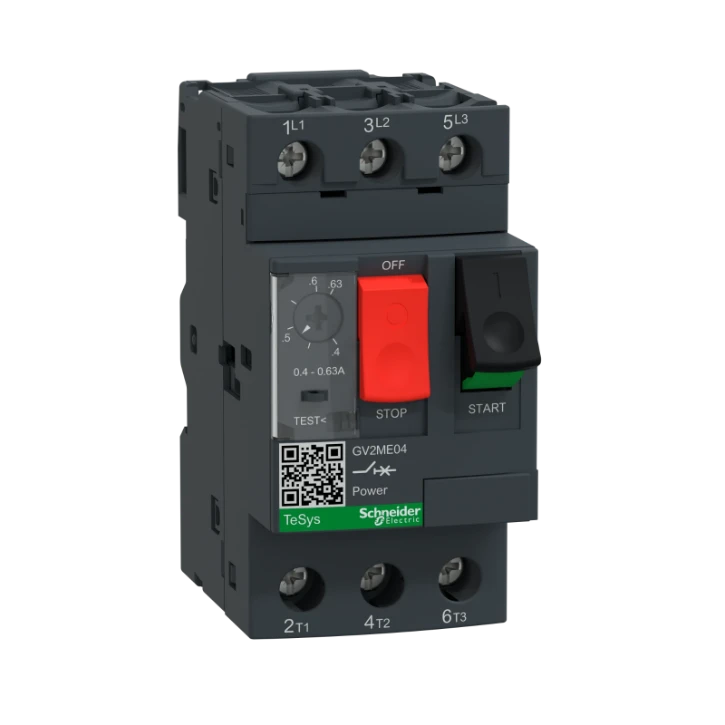

Motor protection circuit-breaker Schneider TeSys Power - GV2
Add to selection
General information
Ordercode YESSS
0169-0498
Product code
GV2ME04
EAN code
3389110343014
Product group
Motor protection circuit-breaker
Brand
Schneider
Serie
TeSys Power - GV2
Type
GV2ME04
Motorschutzschalter, 3p, 0,4-0,63A, Tasterbetätigung, Schraubanschluss
Motorschutzschalter, 3p, 0,4-0,63A, Tasterbetätigung, Schraubanschluss
Product description
TeSys Motorschutzschalter GV2ME. Motorschutzschalter, 3P, Tasterbetätigung, Schraubanschluss. Bemessungsleistung 0,18 kW, Einstellbereich 0,40-0,63 A. Mit thermischen und magnetischen Auslösern. In der Grundausführung plombierbar und abschließbar. Betätigung über Taster, Schraubklemmen. Bemessungsspannung 400 V, nach AC-3.
Product specifications
Adjustment range undelayed short-circuit release
8 - 8 A
Rated operating voltage
230 - 690 V
With thermal overload protection
Yes
Device construction
Complete device in housing
Degree of protection (IP)
IP20
Overload release current setting
0.4 - 0.63 A
Rated short-circuit breaking capacity Icu at 400 V, AC
100 kA
Phase failure sensitive
Yes
Switch off technique
Thermomagnetic
Rated permanent current Iu
0.63 A
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 230 V
0.09 kW
Type of control element
Push button
Rated operation power at AC-3, 400 V
0.18 kW
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Height
89 mm
Width
45 mm
Depth
78.2 mm
Power loss
2.5 W
