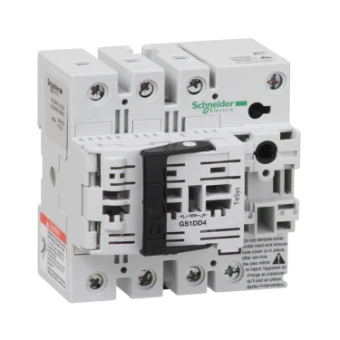

Fuse switch disconnector Schneider TeSys GS
Add to selection
General information
Ordercode YESSS
0168-8914
Product code
GS1DD4
EAN code
3389110120110
Product group
Fuse switch disconnector
Brand
Schneider
Serie
TeSys GS
Type
GS1DD4
Grundgerät für Sicherungen GS1, TeSys GS, 3p+N 3 F, NFC,
Grundgerät für Sicherungen GS1, TeSys GS, 3p+N 3 F, NFC, 32A
Product description
Sicherungslasttrenner Der Einsatz von Sicherungen ist eine zuverlässige undeffektive Lösung zum Schutz Ihrer Niederspannungsausrüstung gegen Kurzschlüsse.
Product specifications
Number of poles
4
Rated permanent current Iu
32 A
Suitable for fuses
10x38 mm
Rated operation power at AC-23, 400 V
15 kW
Version as main switch
Yes
Version as safety switch
No
Rated short-time withstand current lcw
100 kA
Suitable for busbar mounting
No
Degree of protection (IP), front side
IP20
Max. rated operation voltage Ue AC
800 V
Conditioned rated short-circuit current Iq
100 kA
Cable entry
Other
With error protection
No
Equipped with connectors
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Without actuator
Position control element
Other
Version as emergency stop installation
No
Motor drive optional
No
Motor drive integrated
No
