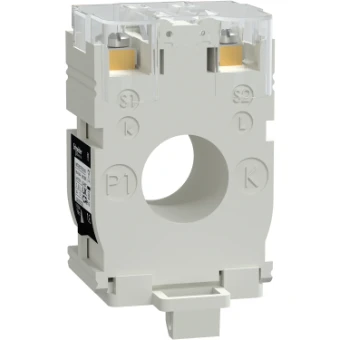

Current transformer Schneider Stromwandler TI
Add to selection
General information
Ordercode YESSS
4181-9791
Product code
METSECT5CC008
EAN code
3303431123421
Product group
Current transformer
Brand
Schneider
Serie
Stromwandler TI
Type
METSECT5CC008
Wandler TI 75/5 TR Kabel D21
Wandler TI 75/5 TR Kabel D21
Product description
PowerLogic. Stromwandler TI, Typ CC - für Kabel bis DM 21 mm. Wandler TI 75/5. Grösse_Ipn_5A 75, Leistung VA GKl 1 1,5, Leistung VA GKl 3 2,5. Abmessungen (BxHxT) 44 x 66 x 37 mm. Wandlerverhältnis von Primärstrom lpn zu Sekundärstrom Isn von 5 A für Messgeräte. Betriebsbemessungsspannung Ue max. 720 V, Frequenz 50-60 Hz. Sicherheitsfaktor 40-4000 A FS 95 %.
Product specifications
Number of primary inputs
1
Model
Through-feed current converter
Rated primary current
75 A
Rated secondary current
5 A
Overcurrent limiting factor
FS 5
Rated secondary apparent power
2.5 VA
With contact protection
No
Opening diameter
21 mm
Snap mounting
No
With copper rail
No
Accuracy class
1
Calibrated
No
Height opening
0 - 0 mm
Width opening
0 - 0 mm
Secondary connection
Screw connection
