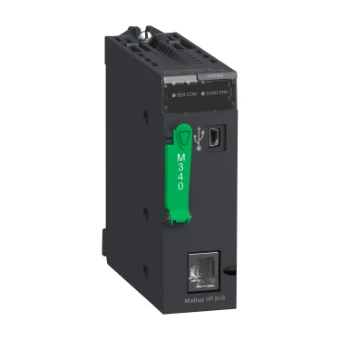

PLC CPU-module Schneider SPS-Steuerung – Modicon M340

Add to selection
General information
Ordercode YESSS
0613-2736
Product code
BMXP341000
EAN code
3595863910698
Product group
PLC CPU-module
Brand
Schneider
Serie
SPS-Steuerung – Modicon M340
Type
BMXP341000
Modicon M340 CPU-Modul, max. 512 digitale + 128 analoge E/A, Modicon M340 CPU-Modul, max. 512 digitale + 128 analoge E/A, Modbus
Product description

Dieses Prozessormodul ist Teil der Modicon M340-Reihe, einem Angebot an speicherprogrammierbaren Steuerungen (SPS). Es bietet eine maximale Konfiguration von 2 Modulträgern, 20 anwendungsspezifische Kanäle und 11 Steckplätze. Es handelt sich um ein Modul mit einer Stromaufnahme von 72mA bei 24V DC, arbeitet mit interner Spannungsversorgung. Die Schnittstellen der Kommunikationsprozessormodule sind 2 Ethernet-Module und 2 AS-Interface-Module. Es wird mit einer Speicherkarte für die Sicherung von Programmen, Konstanten, Symbolen und Daten geliefert. Es ist ein Produkt mit Schutzart IP20. Das Modul verfügt über 512 diskrete E/A-Prozessorkapazitäten in der Multi-Rack-Konfiguration und 128 analoge E/A-Prozessorkapazitäten in der Multi-Rack- und 66 Single-Rack-Konfiguration. Es unterstützt 128kb Daten-, 2048kb und 1792kb Programm-RAM-Speicherkapazität. Es eignet sich für Anwendungen in der Prozessindustrie, erneuerbare Energien, Wasser, Zement, Fertigung, Infrastruktur und Maschinen. Dieses Produkt ist von CE zertifiziert. Es erfüllt die Normen EN 61131-2, EN 61000-6-4, EN 61000-6-2 und EN 61010-2-201. Die kompakte Modicon M340 bietet Flexibilität und integrierte Funktionen in einem kleinen Gehäuse. Im Kern des Prozesses bietet es Ihnen Plug-and-Work-Lösungen sowohl mit Geräten von Schneider Electric als auch von Drittanbietern.

Product specifications
Model
Modular
Voltage type (supply voltage)
DC
Number of HW-interfaces industrial Ethernet
2
Type of memory
NVRAM
Number of relay outputs
0
Max. number of time switches
0
Supply voltage DC
24 - 24 V
Processing time (1K, binary operation)
18 ms
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces USB
1
Number of analogue outputs
128
Number of HW-interfaces parallel
0
Number of analogue inputs
128
Number of HW-interfaces Wireless
0
Number of digital inputs
512
Number of HW-interfaces other
2
Number of digital outputs
512
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
Yes
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Radio standard GPRS
No
System accessory
No
Radio standard GSM
No
Redundancy
No
Mobile communications standard 3G (UMTS)
No
With display
No
Memory size
2048 KByte
Additional program memory possible
Yes
Suitable for rail mounting
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
Yes
SIL according to IEC 61508
None
Rack-assembly possible
Yes
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
35 mm
Height
100 mm
Depth
160 mm
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
