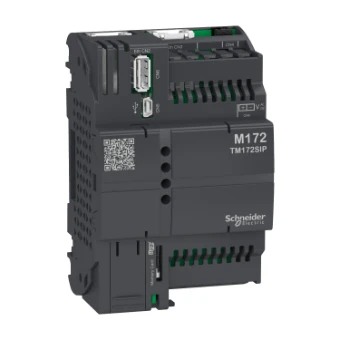

PLC communication module Schneider Modicon M171/M172/M173
Add to selection
General information
Ordercode YESSS
7575-0546
Product code
TM172SIP
EAN code
3606482071100
Product group
PLC communication module
Brand
Schneider
Serie
Modicon M171/M172/M173
Type
TM172SIP
IIoT-Gateway, Modicon M172, direkter Anschluss an SPS
IIoT-Gateway, Modicon M172, direkter Anschluss an SPS
Product description
IIoT-Gateway für sicheren Fernzugriff und Cloud-Anbindung. Kompatibel mit Modicon M172 SPS-Steuerungen. Integrierte Protokolle und Dienste: MQTTs, HTTPs, TLS, SMTPs, FTPs, SNMP. Ethernet-Schnittstelle mit 2x RJ45 Anschlüssen (switched). Konfiguration über Webserver. Umgebungstemperatur: -20°C bis +55°C. Die Spannungsversorgung erfolgt über 24 VAC / 24 VDC. Montage auf 35mm Hutschiene. Ausgeführt in Schutzart IP20. Zertifiziert nach CE, UL, CSA, EAC, RCM, UKCA.
Product specifications
Number of HW-interfaces industrial Ethernet
2
Mobile communications standard 3G (UMTS)
No
Supporting protocol for TCP/IP
Yes
Type of data transmission
Other
Supporting protocol for PROFIBUS
No
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of interfaces PROFINET
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
With optical interface
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Radio standard GPRS
No
Redundancy
No
Radio standard GSM
No
Transmission rate
100000 kBit/s
With potential separation
No
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
72 mm
Height
110 mm
Depth
60 mm
Number of HW-interfaces CAN
0
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Power consumption
1.1 W
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
