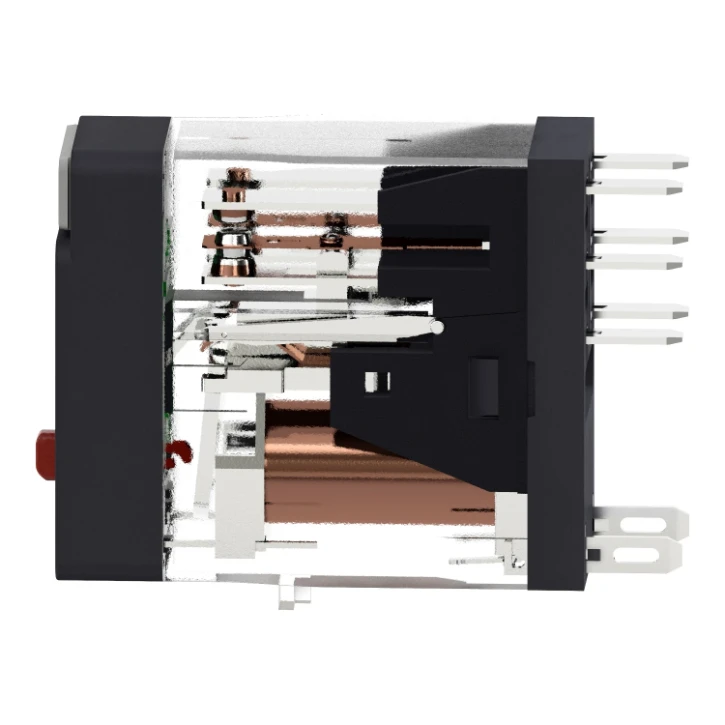

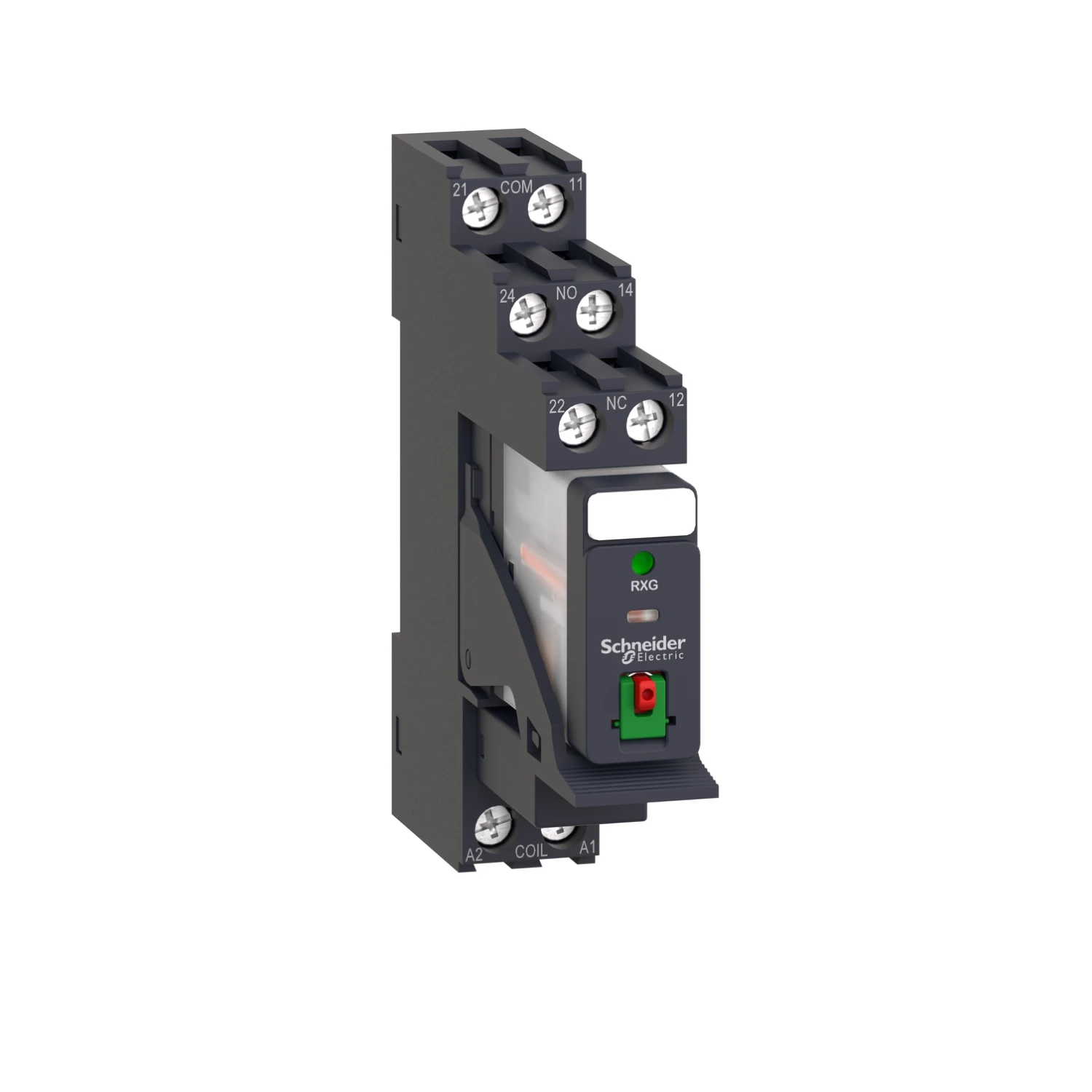

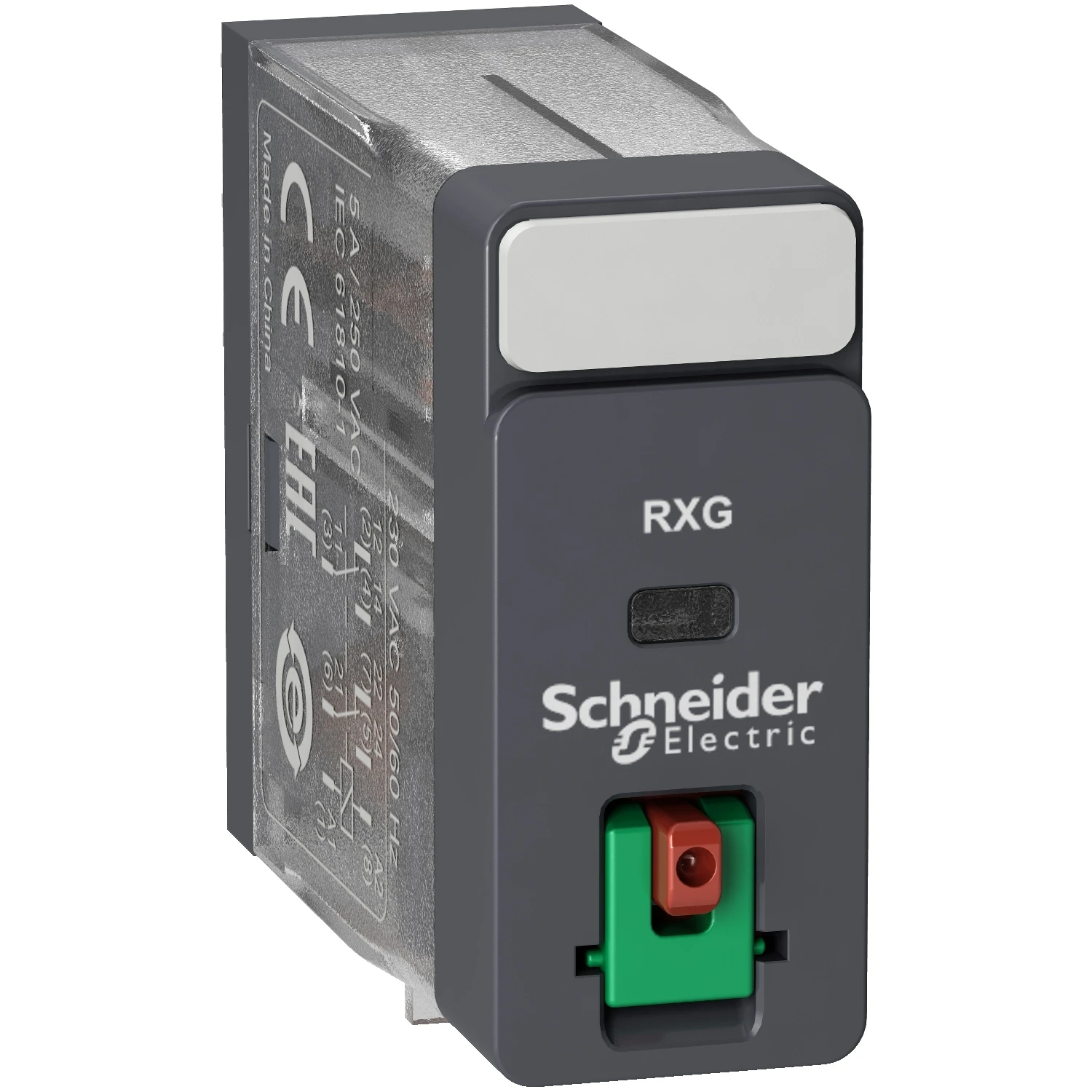

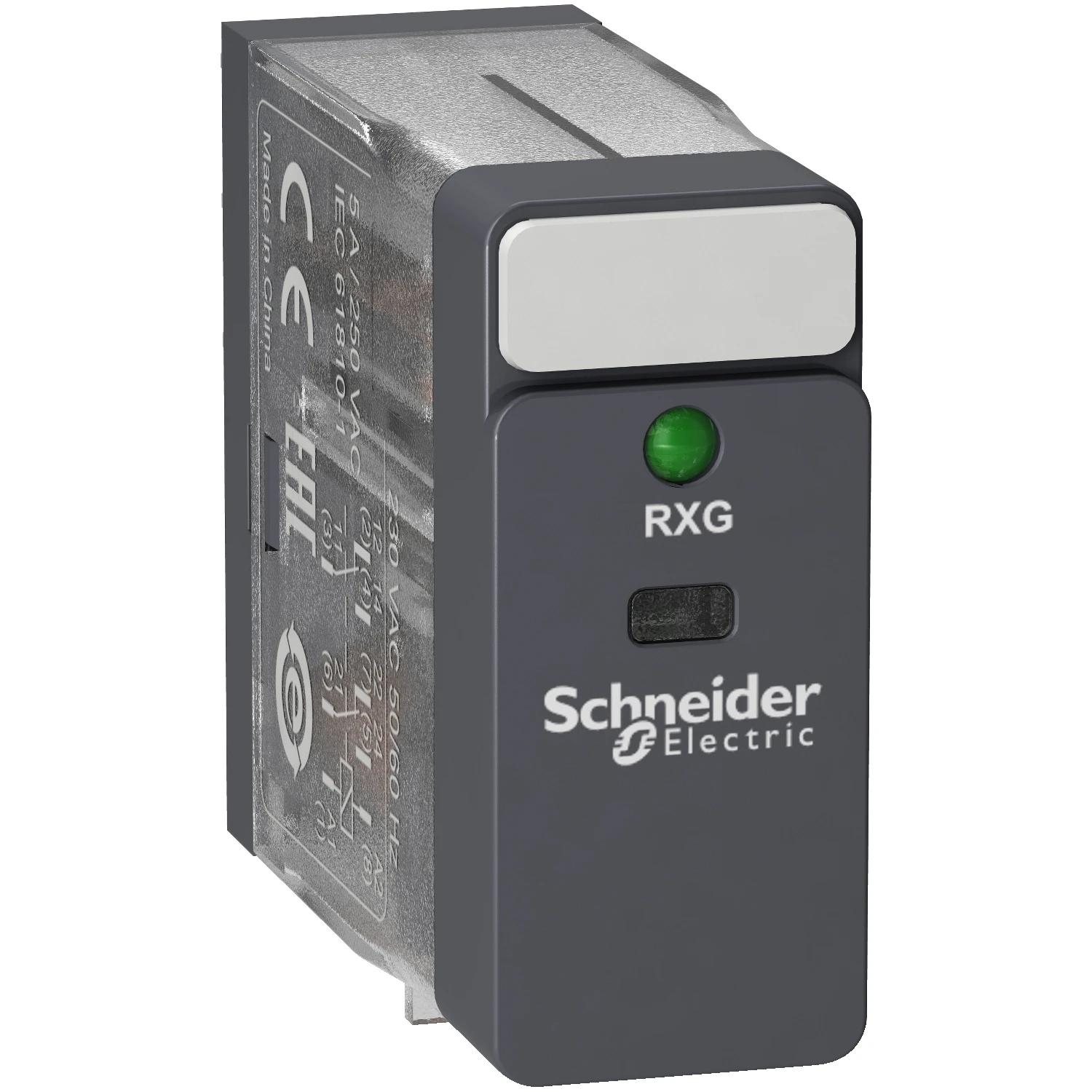

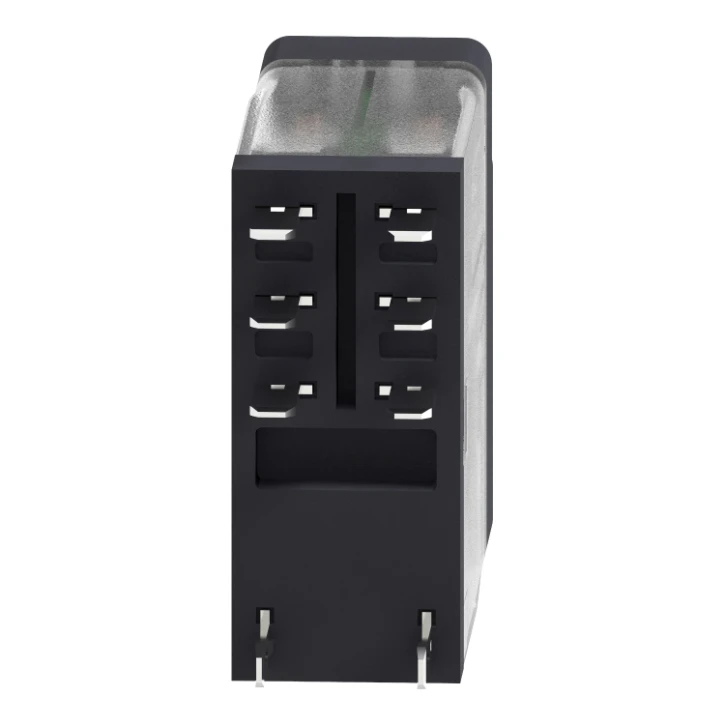

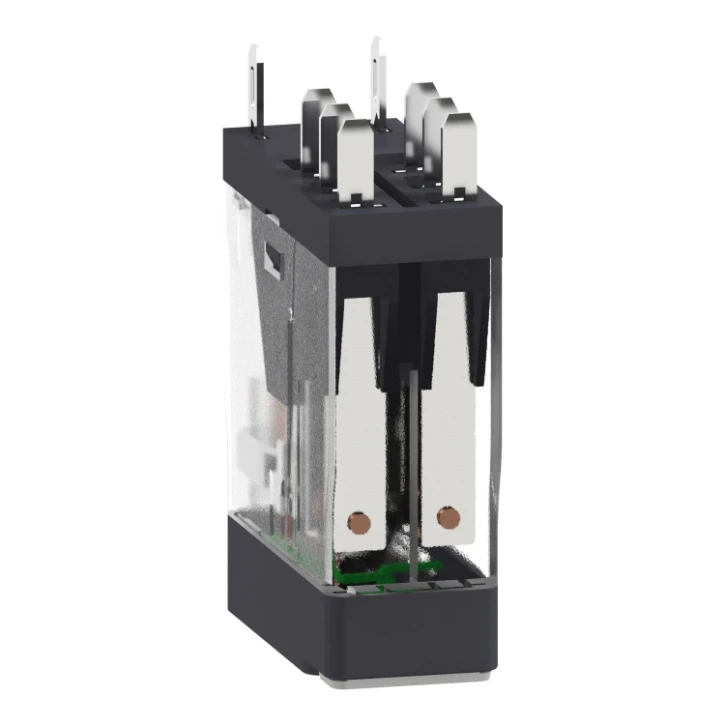

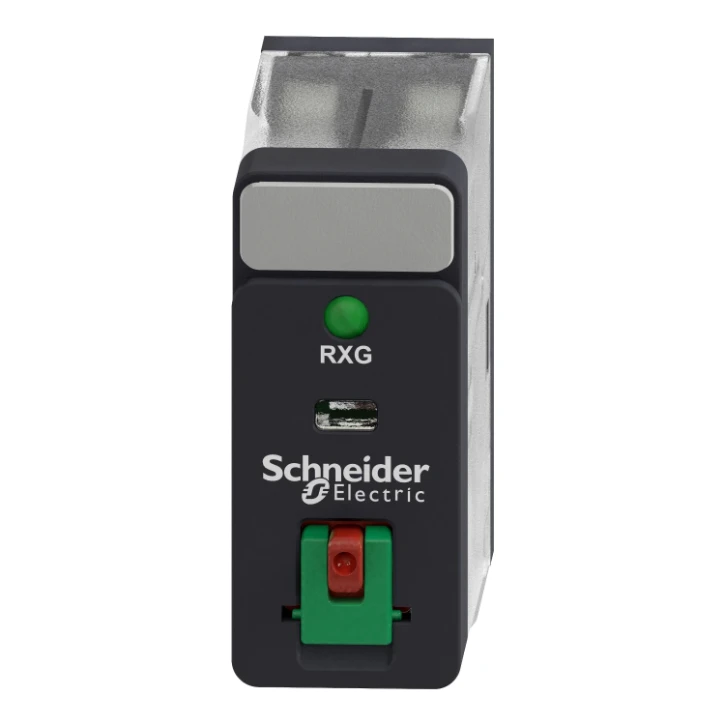

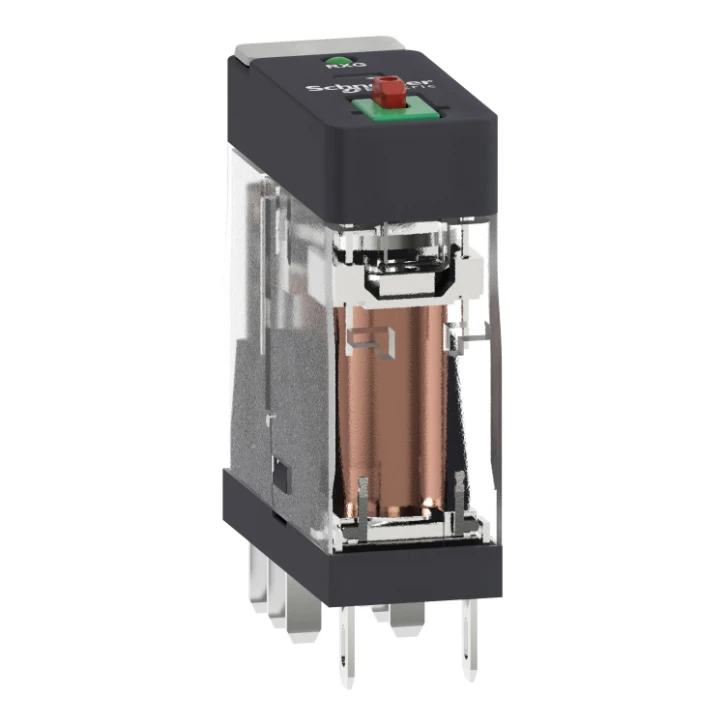

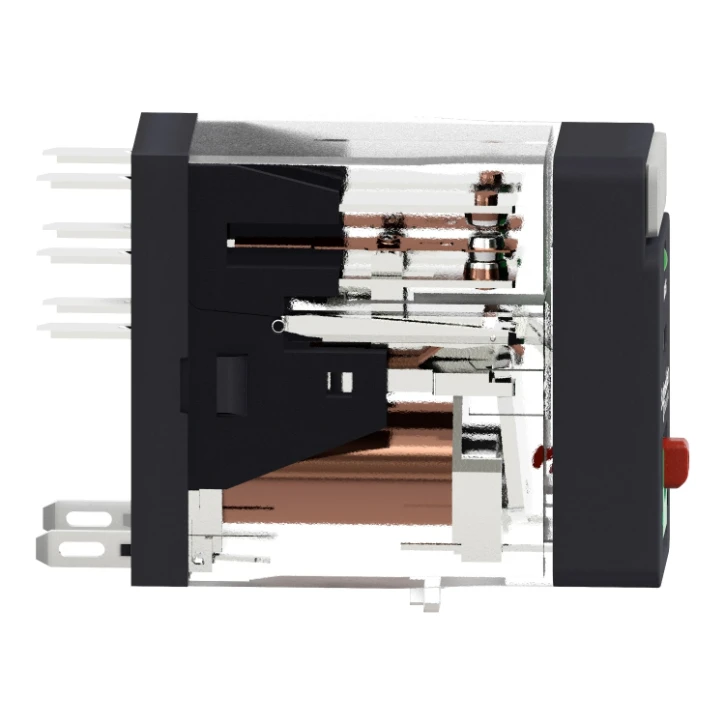

Steckb. Interface-Relais RXG, 2 W, 5 A, 230VAC, mit LED,
Steckb. Interface-Relais RXG, 2 W, 5 A, 230VAC, mit LED, mit Prüftaste
Ordercode YESSS
4670-7292
Product code
RXG22P7
EAN code
3606480689147
Product group
Switching relay
Brand
Schneider
Serie
Harmony Elektromechanische Relais
Type
RXG22P7
Product description

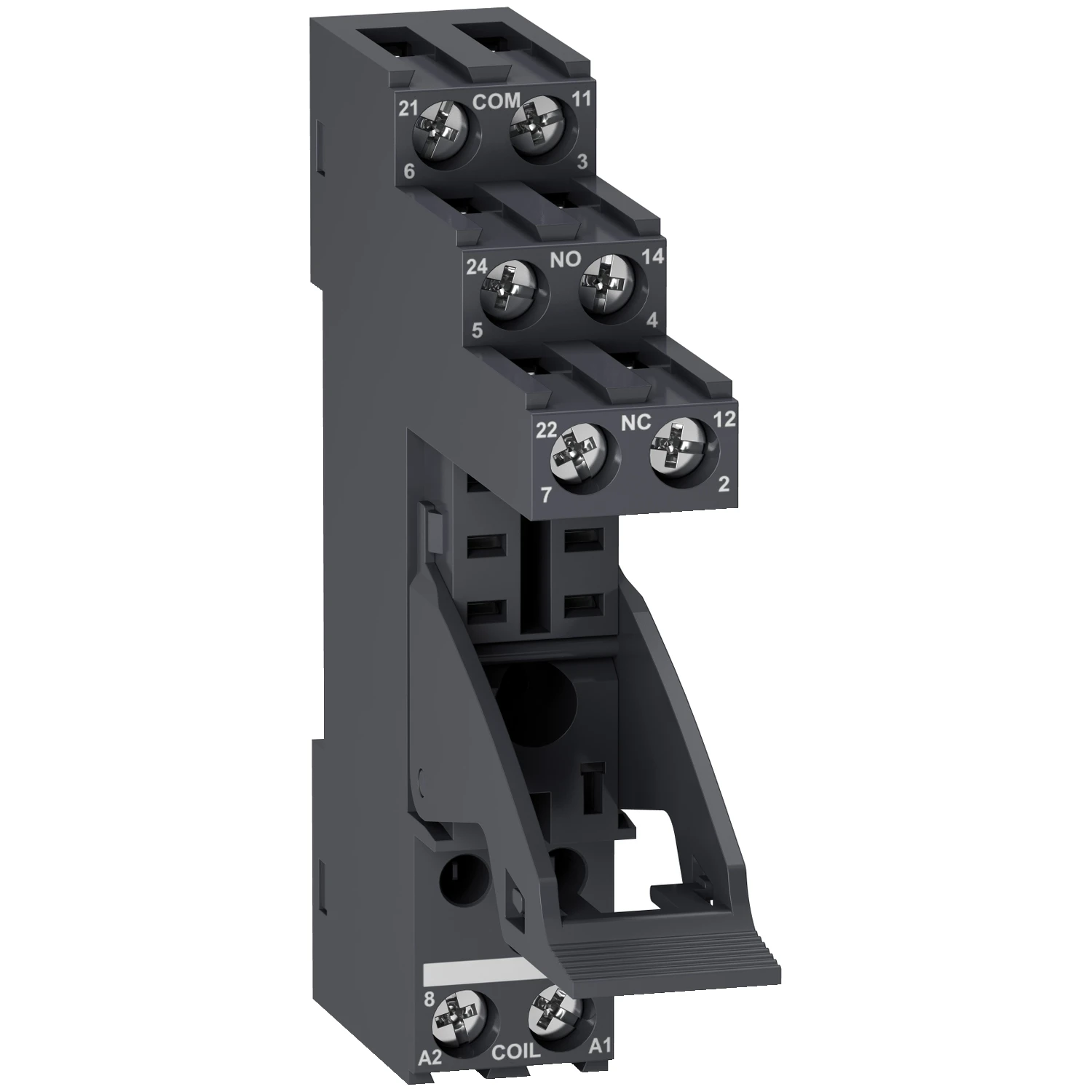

Harmony Relay. Interface-Relais RXG als Komponente. Anzahl Kontakte 2, Ausführung Relaiswechsler, Kontaktbelastbarkeit je 5 A. Spulen-Steuerspannung 230 VAC. Mechanische Stellungsanzeige ja, LED-Anzeige ja. Prüftaste zum Testen der Kontakte ja, Prüfhebel zur dauerhaften Umschaltung für Testzwecke ja, Bedienung werkzeuglos. Anschlüsse stabile Flachstifte. Montage im separaten Stecksockel.
Product specifications
Voltage type for actuating
AC
Drive, polarization
Polarity free
Nominal current
5 A
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
With detachable clamps
No
Type of electric connection
Flat plug-in connection
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
230 - 230 V
Drive, switching attitude
Mono stable
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
Degree of protection (IP)
IP40
With LED indication
Yes
Width
13 mm
Height
34.5 mm
Depth
28.8 mm
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
