Steckb. Interface-Relais RXG, 2 W, 5 A, 24 VDC, mit
- 4670-7316
- |
- RXG22BD
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

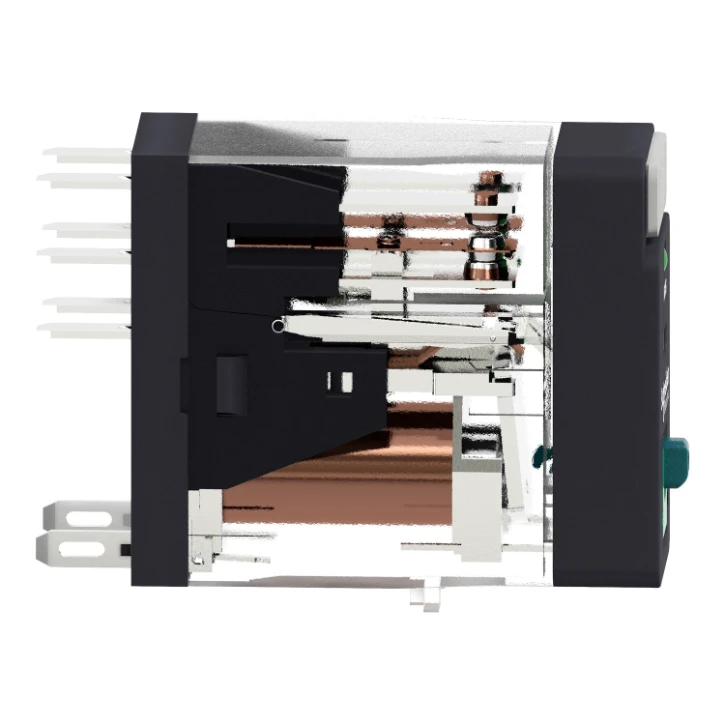

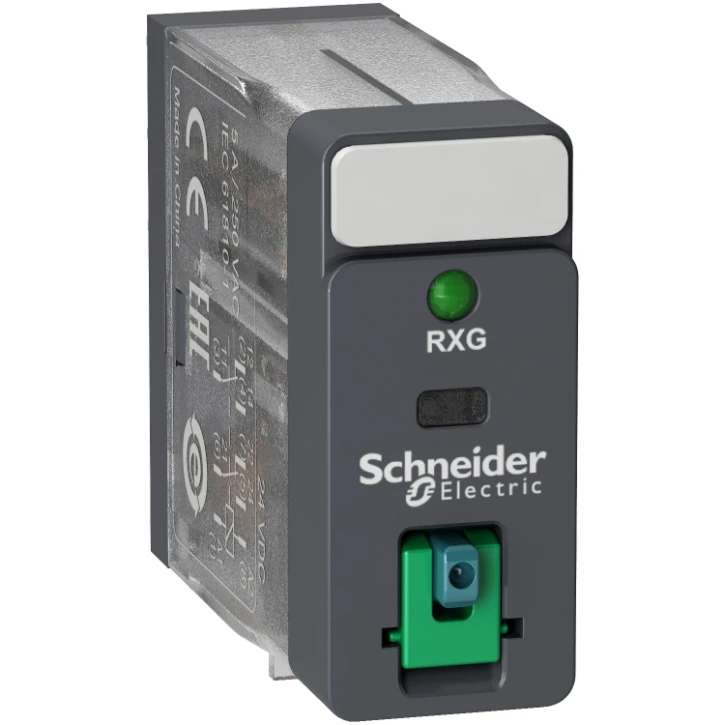

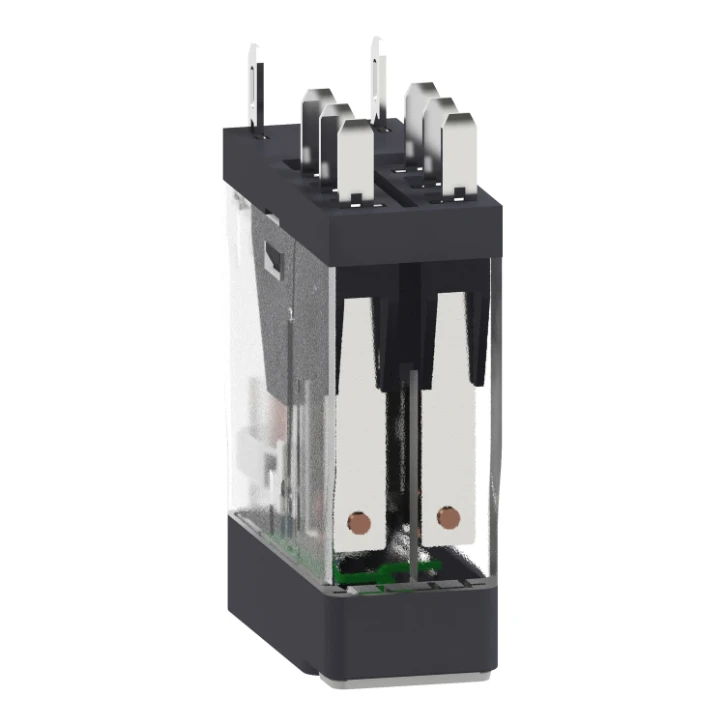

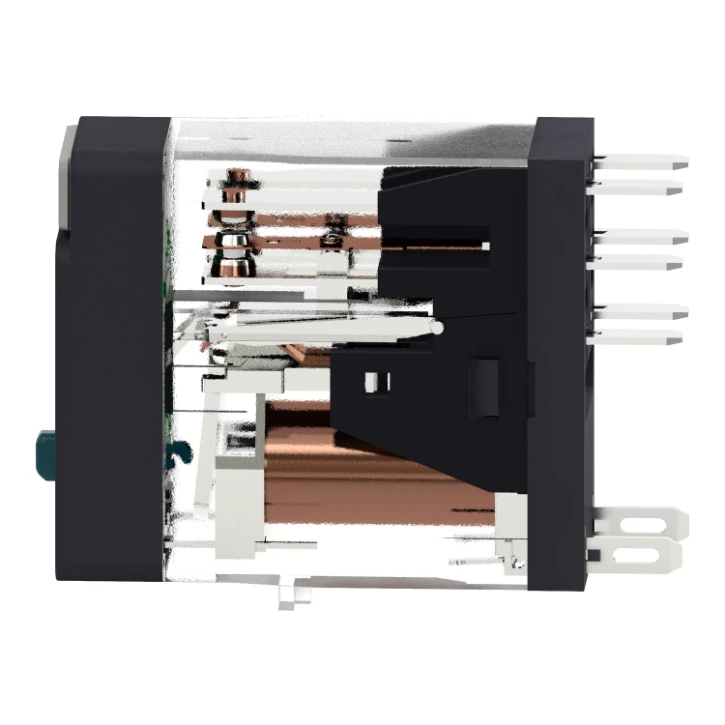

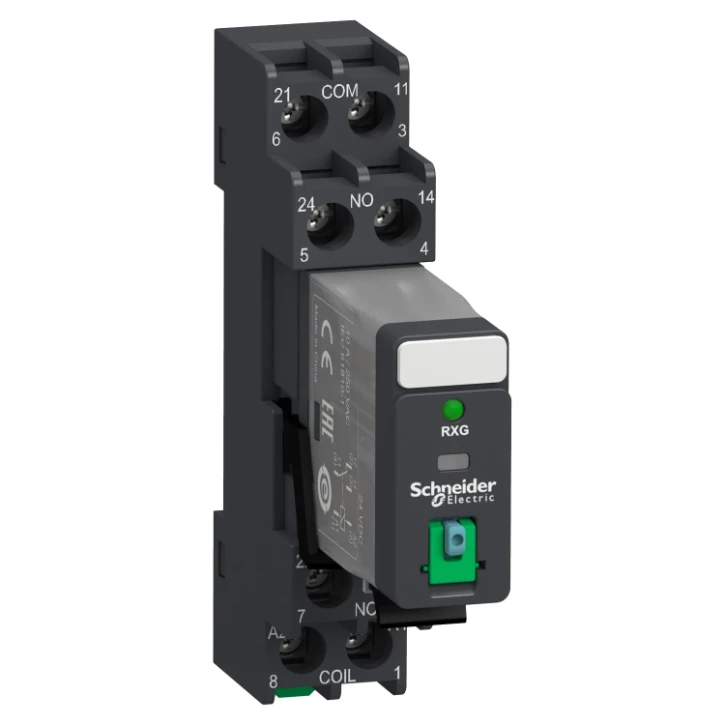

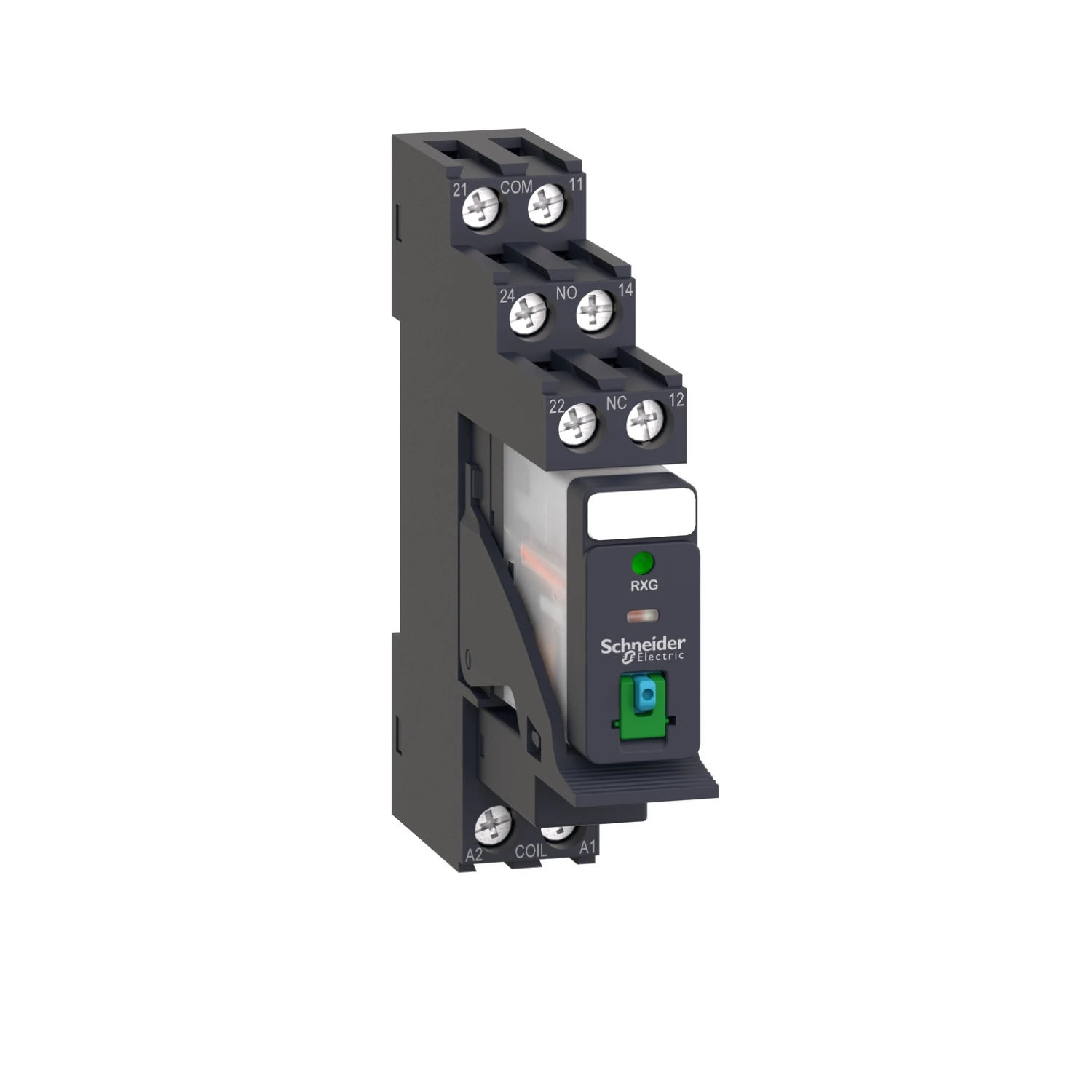

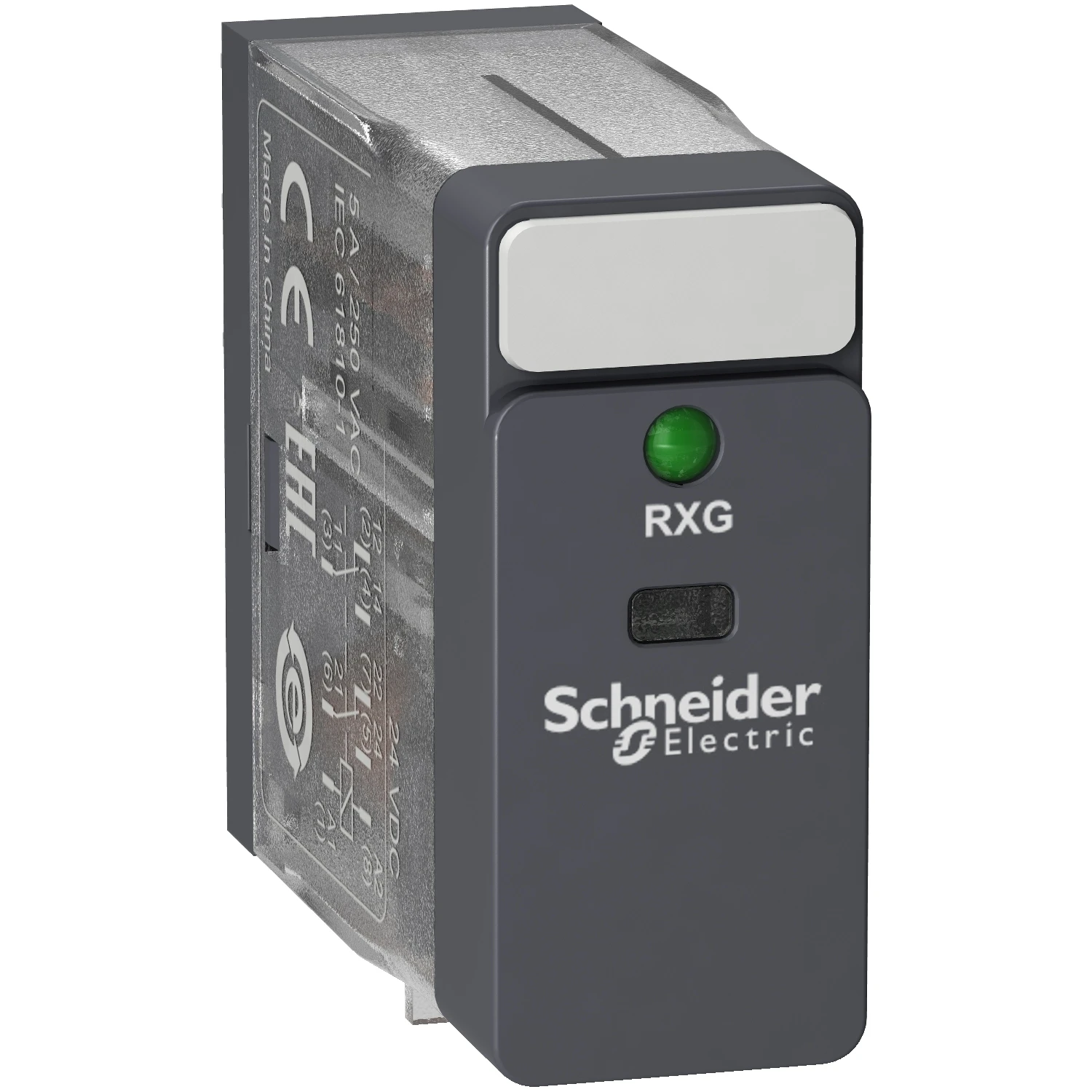

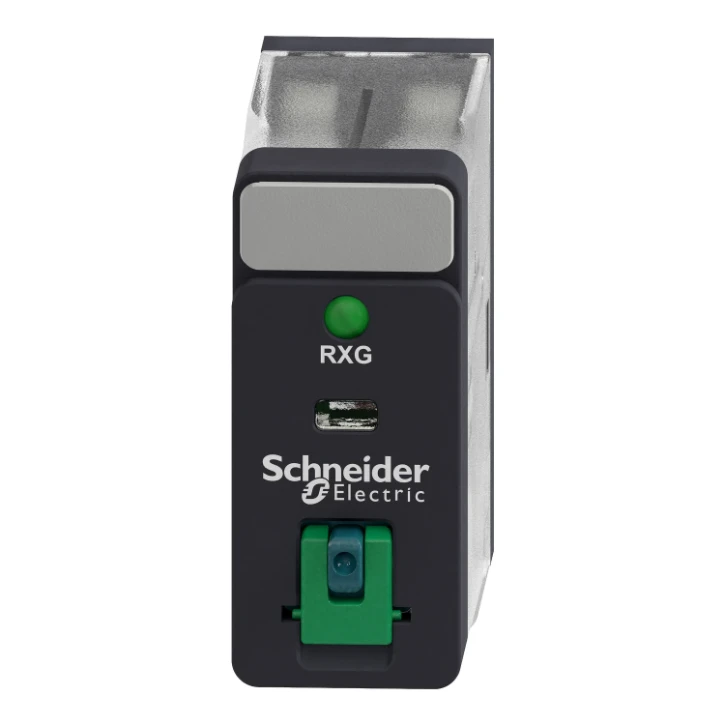

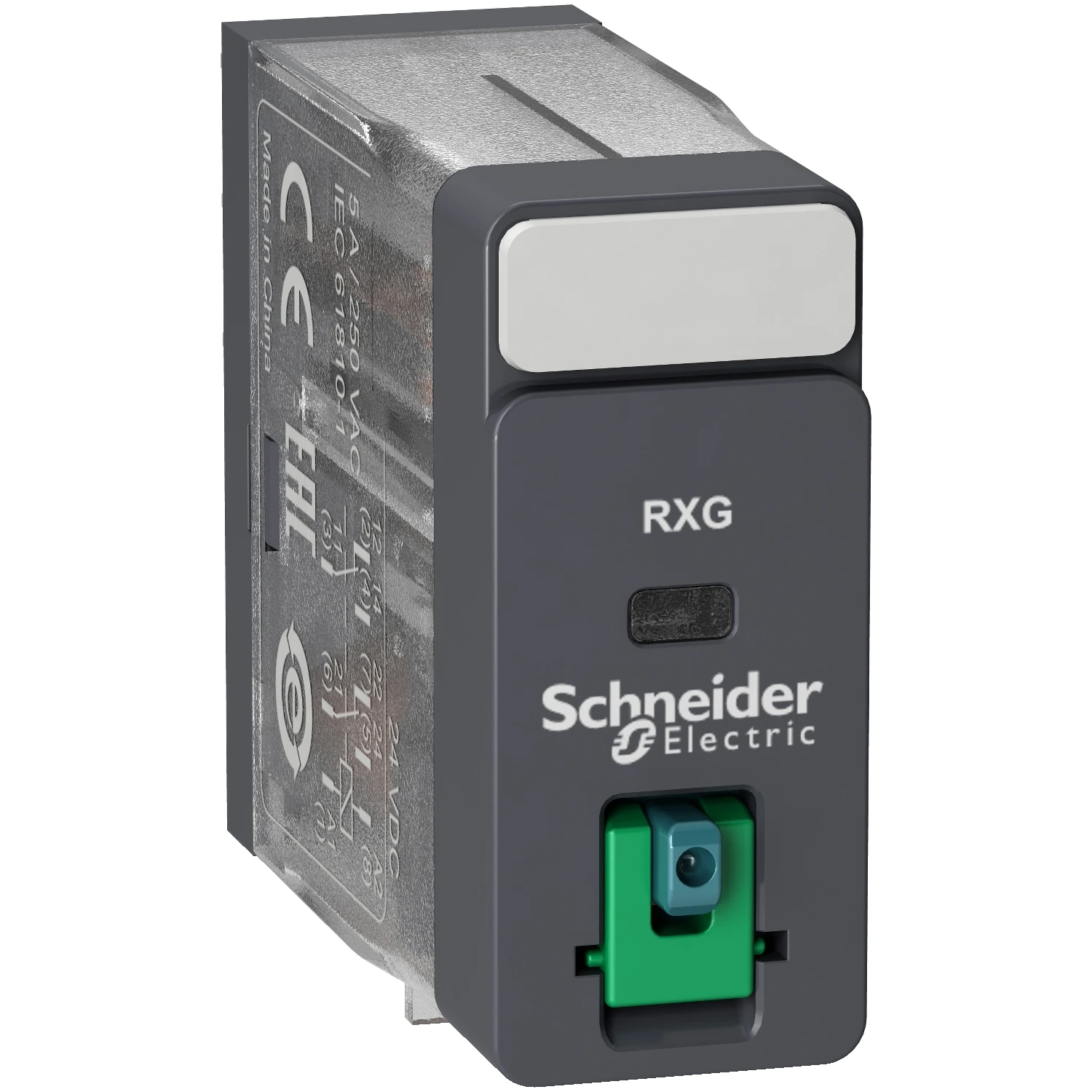

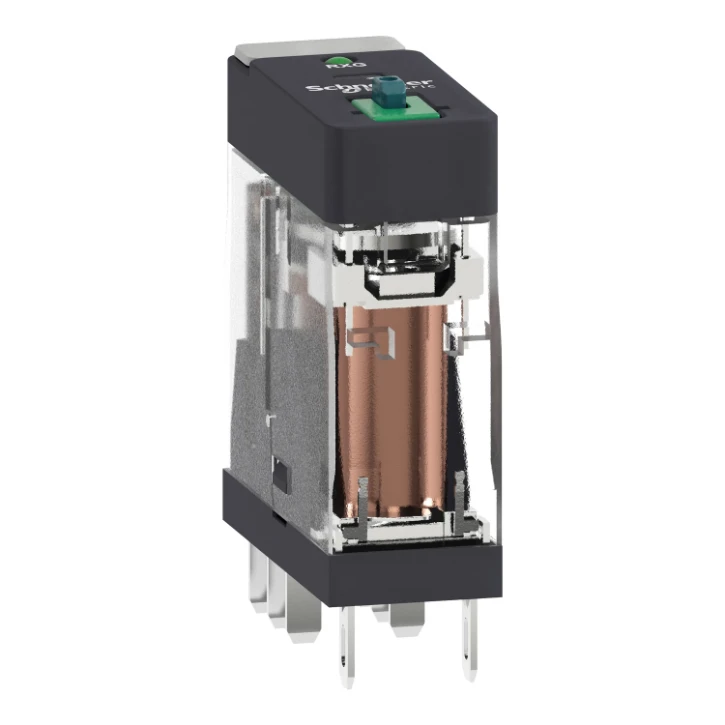

Steckb. Interface-Relais RXG, 2 W, 5 A, 24 VDC, mit
Steckb. Interface-Relais RXG, 2 W, 5 A, 24 VDC, mit LED, mit Prüftaste
Ordercode YESSS
4670-7316
Product code
RXG22BD
EAN code
3606480689178
Product group
Switching relay
Brand
Schneider
Serie
Harmony Elektromechanische Relais
Type
RXG22BD
Product description
Harmony Relay. Interface-Relais RXG als Komponente. Anzahl Kontakte 1, Ausführung Relaiswechsler, Kontaktbelastbarkeit 10 A. Spulen-Steuerspannung 24 VDC. Mechanische Stellungsanzeige ja, LED-Anzeige ja. Prüftaste zum Testen der Kontakte ja, Prüfhebel zur dauerhaften Umschaltung für Testzwecke ja, Bedienung werkzeuglos. Anschlüsse stabile Flachstifte. Montage im separaten Stecksockel.
Product specifications
Voltage type for actuating
DC
Drive, polarization
Polarized
Nominal current
5 A
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
With detachable clamps
No
Type of electric connection
Flat plug-in connection
Rated control supply voltage DC
24 - 24 V
Drive, switching attitude
Mono stable
With forced-guided contacts
Yes
Type of switch contact
Single contact
Complete with socket
No
Degree of protection (IP)
IP40
With LED indication
Yes
Width
13 mm
Height
34.5 mm
Depth
28.8 mm
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
