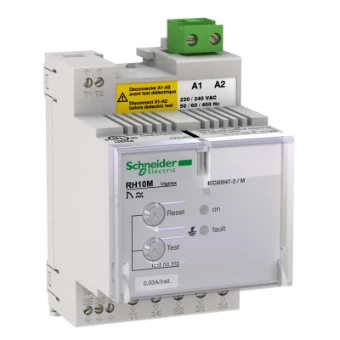

Residual current protection relay, VigiPacT RH10M, 300mA, 110/130VAC 50/60Hz, DIN
Add to selection
General information
Ordercode YESSS
7245-8854
Product code
56125
EAN code
3303430561255
Product group
Residual current monitoring relay
Brand
Schneider Electric
Type
56125
Residual current protection relay, VigiPacT RH10M, 300mA, 110/130VAC 50/60Hz, DIN
Residual current protection relay, VigiPacT RH10M, 300mA, 110/130VAC 50/60Hz, DIN rail mounting
STOCK
IN STOCK
0
piece
Product description
residual current protection relay, VigiPacT RH10M, 300 mA, 110/130 VAC 50/60 Hz, DIN rail mounting
Product specifications
Function
For three-phase supply system
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Type of electric connection
Screw connection
With detachable clamps
No
Response value amperage 1
0 - 30 mA
Response value amperage 2
0 - 30 mA
Min. adjustable delay-on energization time
0 s
Max. permitted delay-on energization time
0.04 s
Indication of difference current
No
Error registration possible
No
Number of contacts as change-over contact
1
Width
54 mm
Height
97 mm
Depth
74 mm
