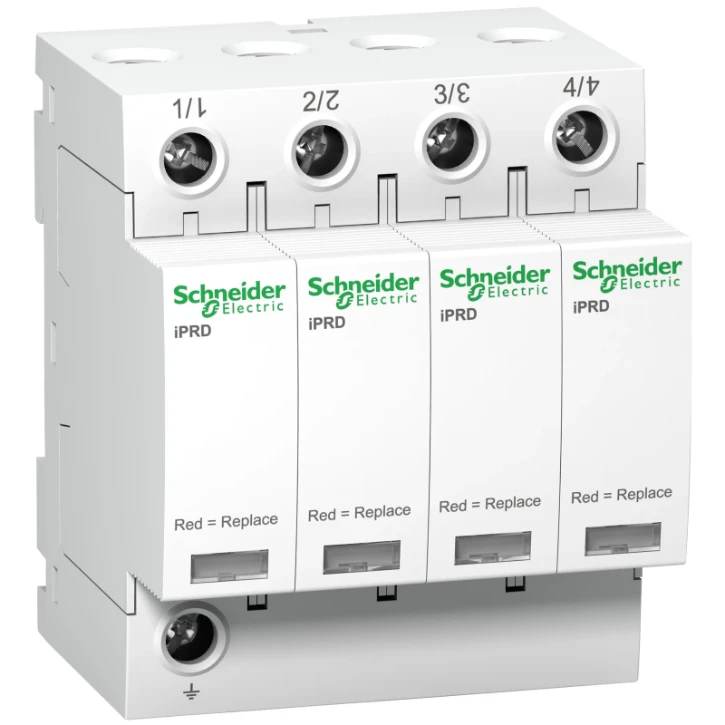

Überspannungsabl. iPRD40, Typ 2, Steckbare Schutzmodule, 4P, Imax 40kA
- 4174-5883
- |
- A9L40400
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Überspannungsabl. iPRD40, Typ 2, Steckbare Schutzmodule, 4P, Imax 40kA
Überspannungsabl. iPRD40, Typ 2, Steckbare Schutzmodule, 4P, Imax 40kA
Ordercode YESSS
4174-5883
Product code
A9L40400
EAN code
3606480506376
Product group
Surge protection device for power supply systems
Brand
Schneider
Serie
Acti9 iPRD
Type
A9L40400
Product description
Überspannungsableiter Acti 9 iPRD40. 4-polig, Imax 40kA. Steckbare Schutzmodule, Typ 2.
Product specifications
System configuration DC
No
System configuration IT
No
System configuration TN
No
Nominal discharge surge current (8/20)
15 kA
System configuration TN-C
Yes
Max. continuous voltage AC
350 V
System configuration TN-C-S
No
Nominal voltage AC
350 V
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Voltage protection level
1.6 kV
Number of conductors (without earthing)
4
Mounting method
DIN rail (top hat rail) 35 mm
Voltage protection level N-PE
1.4 kV
Short-circuit breaking capacity (Isccr)
50 kA
Construction size
4 modular spacing
Max. discharge surge current (8/20)
40 kA
Max. conductor cross section solid (solid, stranded)
25 mm²
With remote signalling contact
No
Max. conductor cross section flexible (fine-strand)
16 mm²
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
Integrated backup fuse
No
Max. overcurrent protection device, parallel connection (fuse)
63 A
Max. overcurrent protection device, series connection (fuse)
80 A
Integrated short-circuit protection
No
Leakage-current free
No
