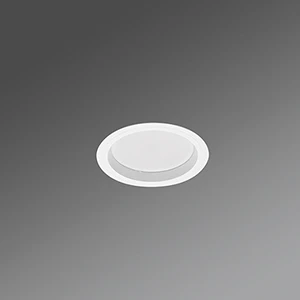

Einbau-Downlight, Diffusor opal
Add to selection
General information
Ordercode YESSS
5669-1772
Product code
37671104140
EAN code
4020863344260
Product group
Downlight/spot/floodlight
Brand
Regiolux
Type
relo-RDES-O/140 1500 840 ET
Einbau-Downlight, Diffusor opal
Einbau-Downlight, Diffusor opal
STOCK
IN STOCK
0
piece
Product description
Gehäuse aus Aluminium-Druckguss in Ral 9016 verkehrsweiß lackiert, mit Treiber betriebsfähig verdrahtet, Aluminium-Kühlkörper für effektive Passivkühlung und zurückgesetzter opalen Diffusorscheibe zur Auflockerung der Deckenoptik. Mit Befestigungsfedern für werkzeuglose Montage, geeignet für Deckenstärken von 10mm-20mm. Lichtverteilung direkt breitstrahlend mittels Diffusor opal, diffus strahlend, mit strukturierter Oberfläche. Integrierter LED Treiber mit Leuchte betriebsfähig verdrahtet. Elektrischer Anschluss über 1,0m lange Anschlussleitung, 2x0,75mm².
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Not adjustable
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
None
Light distribution
Symmetric
Suitable for number of light sources
1
Lamp holder
Other
Type of control gear
LED operating device current-controlled
Suitable for lamp power
16 - 16 W
With control gear
Yes
Surface protection
Lacquered
Nominal current
70 - 70 mA
Max. system power
16 W
Surface brushed
No
Nominal voltage
230 - 230 V
Colour temperature
4000 - 4000 K
Housing material
Aluminium
Material cover
Plastic, opal
Dimming depending on control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
41-80° - Wide beam
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
45 mm
Voltage type
AC
Dimming mains voltage modulation
No
Outer diameter
140 mm
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK02
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Diffuser lens/optic/panel
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
75000 h
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Type of wiring
Ending
Number of poles
2
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM5
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
86 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
80 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
60 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
10 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Built-in diameter
125 - 125 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
85
Max. number of luminaires per miniature circuit breaker C16 (MCB)
127
IFTTT support available
No
Unified Glare Ratio (UGR)
28.3
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
White
