General information

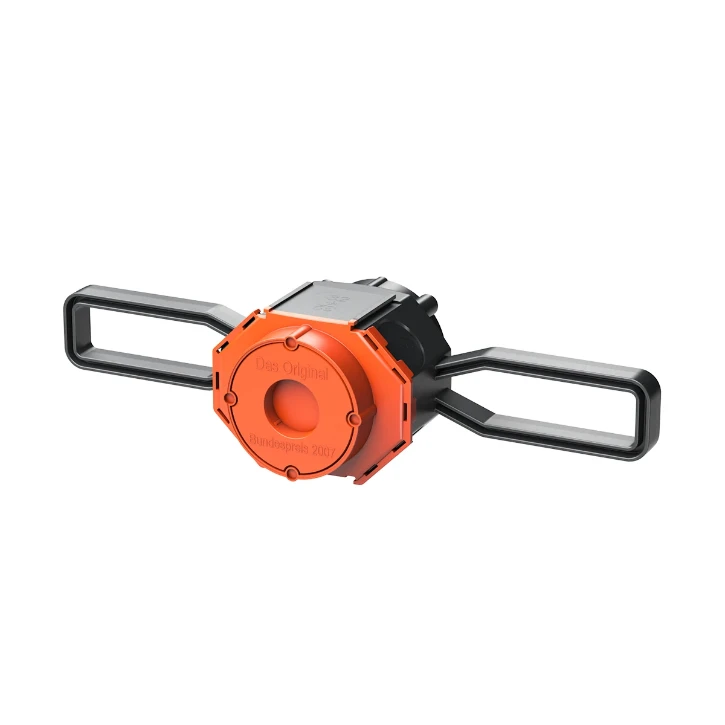

Flügelbetondose 2.0, Betonbau
Flügelbetondose 2.0, Betonbau
Ordercode YESSS
7561-5247
Product code
P730
EAN code
4260182062609
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
Primo
Type
P730
Product description
Die Kombi-Rohreinführungen M20/M25/M32 der Flügelbetondose 2.0 werden ausgestanzt oder gebohrt. Der Dosendeckel wird auf der Baustelle auf die Schalung genagelt. Durch die besondere Form steht bei der Installation 70% mehr Klemmraum zur Nutzung als Elektronikdose zur Verfügung. Zur Öffnung der Rohreinführungen empfehlen wir den Stufenschälbohrer. Kein Werkzeug zur Hand? In diesem Fall lohnt sich der Einsatz der Primo Membrandose für die werkzeuglose Rohreinführung.
Product specifications
Mounting method
Concrete building
Diameter
60 mm
Shape
Octagonal
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Device connection box (round/square)
Model
Single
Equipped with
None
Depth
90 - 90 mm
For number of device inserts
1
Mounting switching equipment
Screw or spread out
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20/25 mm
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
No
Number of inlets
6
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Number of included spouts
0
Degree of protection (IP)
IP30
Cover attachment
Snapped on
Sealable
No
Circuit integrity
None
With screening
No
Cover model
Mounting cover
Transparent cover
No
Luminaire hook mounting
No
Nozzle
None
Special application
Other
Number of non-adjustable device fixing lugs
4
Number of adjustable device fixing lugs
0
With partition panel
No
