General information
2-Kanal Dimmer
2-Kanal Dimmer
Ordercode YESSS
7581-6950
Product code
DIM-02
EAN code
7330018321167
Product group
Dimmer
Brand
Plejd
Serie
DIM
Type
DIM-02
Product description

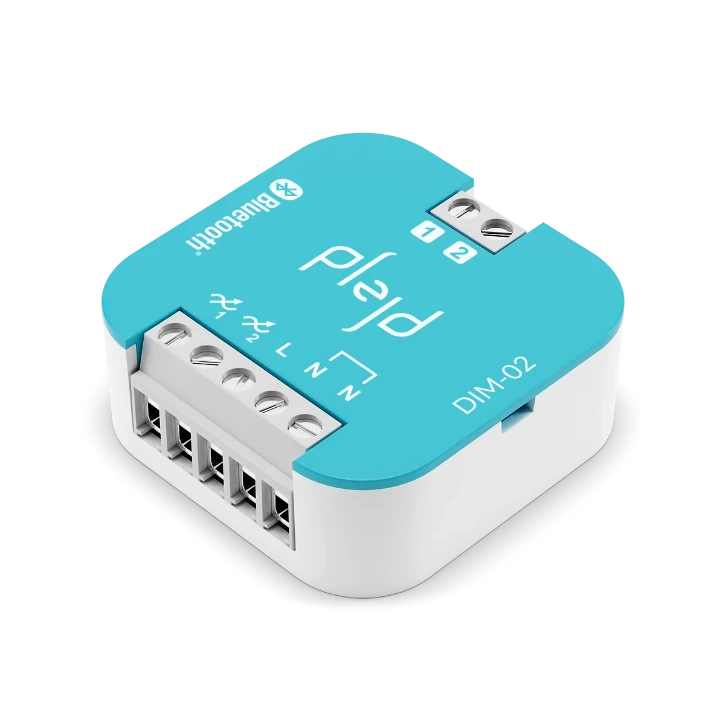

2-Kanal Dimmer ist ein Universaldimmer mit Ausgängen für zwei verschiedene Lasten. Der Dimmer hat zwei separate Eingänge zur Steuerung über einen Taster oder einen Bewegungssensor. Das Produkt kann drahtlos über die App oder durch andere Produkte von Plejd gesteuert werden. DIM-02 kann auch automatisch, mit eingebauten Zeitfunktionen wie Astro- und Wochen-Zeitschaltuhr gesteuert werden. 2-Kanal Dimmer verfügt über einstellbare Mindest-, Maximal- und Startniveaus und kann Lasten von bis zu 100 VA pro Kanal standhalten.
Product specifications
Assembly arrangement
Basic element
Operating method
Turn/push button
Number of modules (module system)
1
Light value memory
Yes
App control via Bluetooth
Yes
Dimming phase cut-on (leading edge)
Yes
Serial dimmer
Yes
Dimming phase cut-off (trailing edge)
Yes
Type of load
Universal and LED Retrofit
Substation input
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
Yes
Applicable with time switch/timer
Yes
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Built-in installation
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Turquoise
RAL-number (similar)
6027
Suitable for degree of protection (IP)
IP20
Transparent
No
Nominal voltage
220 - 240 V
Frequency
50 - 50 Hz
Impact strength
IK00
Control voltage
220 - 240 V
Device width
46 mm
Device height
46 mm
Device depth
18 mm
Connection type
Screwed terminal
Core cross section
0.5 - 4 mm²
Min. depth of built-in installation box
18 mm
Nominal power resistive load
0 - 200 W
Nominal power inductive load
0 - 0 VA
Nominal power capacitive load
0 - 200 VA
Max. switching power LED
100 W
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
No
IFTTT support available
No
Number of units
1
Min. brightness controllable
Yes
Power consumption
0.3 W
