Circular connector for field assembly (industrial connector) Phoenix Contact
Add to selection
General information
Ordercode YESSS
4611-0826
Product code
1414416
EAN code
4055626026725
Product group
Circular connector for field assembly (industrial connector)
Brand
Phoenix Contact
Conductor connectors
Conductor connectors
Product description

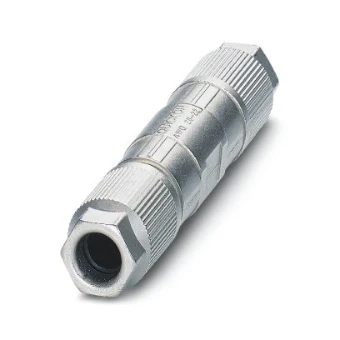

Conductor connectors, PROFINET CAT5 (100 Mbps), 4-position, halogen-free, shielded, Cable connectors, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm ... 9.7 mm
Product specifications
Contact type
Other
Diameter connector
19 mm
Number of data contacts
0
Number of power contacts
0
Number of control contacts
4
Rated current In
4 A
For cable outer diameter
5 - 9.7 mm
Ambient temperature
85 - 85 °C
Rated voltage
48 V
Over voltage category
II
Pollution degree
3
Connectable conductor cross section solid-core
0.5 - 0.5 mm²
Type of electric connection
Insulation displacement connection
Material of contact surface
Nickel
Material housing
Zinc
Coating housing
Other
Locking mechanism
Other
Material thread ring
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Screened
Yes
With status indication
No
