General information
Power supply unit
Power supply unit
Ordercode YESSS
7563-7152
Product code
1170955
EAN code
4063151195410
Product group
DC-power supply
Brand
Phoenix Contact
Type
STEP3-PS/1AC/12DC/5/PT
Product description

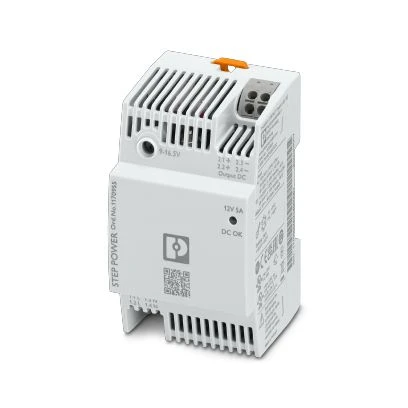

Primary-switched power supply unit, STEP POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 5 A
Product specifications
Voltage type (supply voltage)
AC/DC
Secondary voltage adjustable
Yes
Power output
60 W
Output voltage stabilized
No
Stabilized
Yes
Short-circuit-proof
Yes
1st secondary output voltage
9 - 16.5 V
Max. output current 1
5 A
Nominal value output voltage 1
12 V
Rated supply voltage AC 50 Hz
85 - 264 V
Degree of protection (IP)
IP20
Nominal value output current 1
5 A
Rated supply voltage AC 60 Hz
85 - 264 V
Rated supply voltage DC
88 - 275 V
Type of electric connection
Other
Suitable for rail mounting
No
Suitable for distribution board
Yes
Direct mounting possible
Yes
Performance level according to EN ISO 13849-1
None
SIL according to IEC 61508
None
