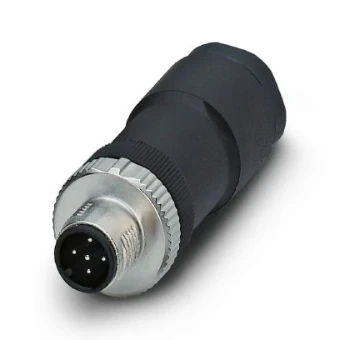

Circular connector for field assembly (industrial connector) Phoenix Contact
Add to selection
General information
Ordercode YESSS
0319-6939
Product code
1543016
EAN code
4046356097628
Product group
Circular connector for field assembly (industrial connector)
Brand
Phoenix Contact
Type
SACC-MS-5CON-PG11-DUO-M SCO
Connector
Connector
Product description
Connector, Universal, 5-position, Plug straight M12 SPEEDCON, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg11-DUO, external cable diameter 2.1 mm ... 3 mm / 4 mm ... 5.2 mm
Product specifications
Contact type
Pin
Number of data contacts
0
Number of power contacts
0
Type of housing
Straight
Number of control contacts
5
Rated current In
4 A
For cable outer diameter
2.1 - 3 mm
Ambient temperature
85 - 85 °C
Rated voltage
48 V
Overvoltage category
II
Pollution degree
3
Connectable conductor cross section solid-core
0.75 - 0.75 mm²
Type of electric connection
Screw connection
Material of contact surface
Other
Housing material
Other
Coating housing
Other
Type of locking
Other
Material thread ring
Other
With protective conductor
No
Min. number of insertion cycles
100
Screened
No
With status indication
No
