General information
Ordercode YESSS
0319-6930
Product code
1542981
EAN code
4046356097659
Product group
Circular connector for field assembly (industrial connector)
Brand
Phoenix Contact
Type
SACC-MR-4CON-PG 7-M SCO
Connector
Connector
Product description

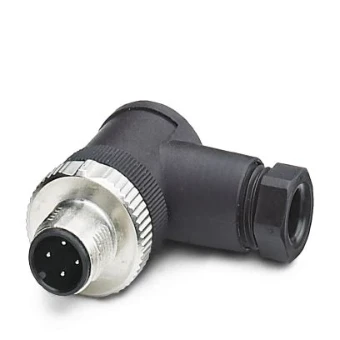

Connector, Universal, 4-position, Plug angled M12 SPEEDCON, A-coded, Screw connection, knurl material: Nickel-plated brass, cable gland Pg7, external cable diameter 4 mm ... 6 mm
Product specifications
Contact type
Pin
Number of data contacts
0
Number of power contacts
0
Type of housing
Angled
Number of control contacts
4
Rated current In
4 A
For cable outer diameter
4 - 6 mm
Ambient temperature
85 - 85 °C
Rated voltage
250 V
Overvoltage category
II
Pollution degree
3
Connectable conductor cross section solid-core
0.75 - 0.75 mm²
Type of electric connection
Screw connection
Material of contact surface
Other
Housing material
Other
Coating housing
Other
Type of locking
Other
Material thread ring
Other
Inflammability class of insulation material according to UL94
HB
With protective conductor
No
Min. number of insertion cycles
100
Screened
No
With status indication
No
