Circular connector for field assembly (industrial connector) Phoenix Contact
Add to selection
General information
Ordercode YESSS
0319-6849
Product code
1542622
EAN code
4046356097895
Product group
Circular connector for field assembly (industrial connector)
Brand
Phoenix Contact
Type
SACC-DSIV-FS-5CON-L180 SCO THR
Device connector, rear mounting
Device connector, rear mounting
Product description

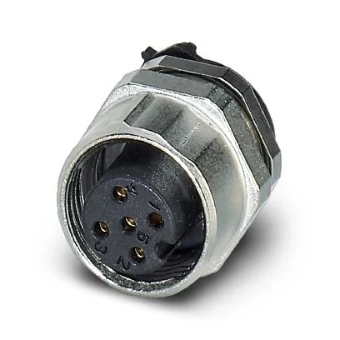

Sensor/actuator flush-type female connector, 5-pos., M12 SPEEDCON, A-coded, rear/screw mounting with M12 thread, with polarity protection, with straight THR solder connection
Product specifications
Contact type
Bus
Number of data contacts
0
Number of power contacts
0
Type of housing
Straight
Number of control contacts
5
Rated current In
4 A
Ambient temperature
85 - 85 °C
Rated voltage
60 V
Overvoltage category
II
Pollution degree
3
Material of contact surface
Gold
Housing material
Other
Type of locking
Other
Material thread ring
Other
Inflammability class of insulation material according to UL94
HB
With protective conductor
No
Degree of protection (IP), mounted
IP67
Screened
No
With status indication
No
