LED-Strassenleuchte 3000K 30W mit auto. Powerreduktion Straßenbeleuchtungsoptik

  • 7590-6890
  • |
  • 3115296
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

LED-Strassenleuchte 3000K 30W mit auto. Powerreduktion Straßenbeleuchtungsoptik LED-Strassenleuchte 3000K 30W mit auto. Powerreduktion Straßenbeleuchtungsoptik
Ordercode YESSS
7590-6890
Product code
3115296
EAN code
8018367722703
Product group
Luminaire for streets and places
Brand
Performance In Lighting
Serie
LYRA+
Type
3115296

Product description

LED Straßenleuchten, bestehend aus: Gehäuse und Abdeckung aus lackiertem Aluminiumdruckguss mit Polyesterpulverbeschichtung, nach vorhergehender chemischer Oberflächenbehandlung ISO 9227/12944 - ISO 9223 (C5). Mastbefestigung aus Aluminiumdruckguss, lackiert Polyesterpulverlack nach vorhergehender chemischer Behandlung; für Masten Ø 60 mm. Optik aus Technopolymer-Linsen mit erhöhter Lichtdurchlässigkeit. „SECURE LIGHT DISTRIBUTION“-System, das eine einheitliche Verteilung des Lichts auch bei Fehlfunktion einer LED garantiert. Hochelastische, verschleißfeste Silikondichtung. Diffusor aus extra klarem, gehärteten Sicherheits-Flachglas. Glas-Verschlussklemmen aus Edelstahl. Leuchte inklusive Konverter. Inklusive zusätzlicher Überspannungsschutz bis 10 kV (DM). Äußere Schrauben aus Edelstahl. Leuchte mit 1-Meter-Kabel H07RN-F 2x1,5 mm². Mastbefestigung für Masten Ø 76 mm ist als Zubehör erhältlich. Erfüllt die Lichtverschmutzungsnormen UNI 10819.

Product specifications

Lamp type
LED exchangeable
Mounting method
Other
Housing material
Aluminium
Degree of protection (IP)
IP66
Protection class according to IEC 61140
II
Surface protection
Powder coating
Suitable for spigot size
60 - 60 mm
Lamp holder
Other
Housing colour
Grey
Material cover
Glass transparent
Suitable for number of light sources
8
Voltage type
AC
Nominal voltage
220 - 240 V
Nominal current
530 - 530 mA
Type of control gear
Electronic ballast
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK06
With light source
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
Stand-alone control
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off (trailing edge)
No
Constant light output (CLO)
No
Dimming phase cut-on (leading edge)
No
With light regulation program control
No
Dimming programmable
No
With connection cable
No
Dimming RF
No
Cable length
1 m
Dimming Sine Wave Reduction
No
Colour of light
White
Dimming Zigbee
No
Colour temperature
3000 - 3000 K
Colour rendering index CRI
70-79
Rated lifetime L70/B50 at 25 °C
360000 h
Degree of protection (NEMA)
4
Light distributor
Focal lens
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Rated ambient temperature according to IEC 62722-2-1
-40 - 55 °C
Suitable for lamp power
30 - 30 W
Max. system power
30 W
Luminaire efficacy
3560 lm/W
Power factor
0.99
Width
220 mm
Height/depth
180 mm
Length
370 mm
Type of wiring
Ending
Number of poles
2
Conductor cross section
1.5 mm²
Connection type
Other
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM3
Type of connection for sensor/communication module
Other
With light sensor
No
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Max. number of luminaires per miniature circuit breaker B16 (MCB)
17
Max. number of luminaires per miniature circuit breaker C16 (MCB)
28
Operation by Bluetooth
No
Dimmable
No
Dimming DALI-2
No
Containing product according to 2019/2020/EU
Yes
Rated luminous flux according to IEC 62722-2- 1
3580 - 3580 lm
Solar powered
No
With integrated PV panel
No
Suitable for off-grid power system
No
Dimming D4i
No
Connectable conductor cross section
1.5 - 2.5 mm²
Zhaga-D4i certified
No
With movement sensor
No
With presence detector
No
Manufacturer's website

Recommended products

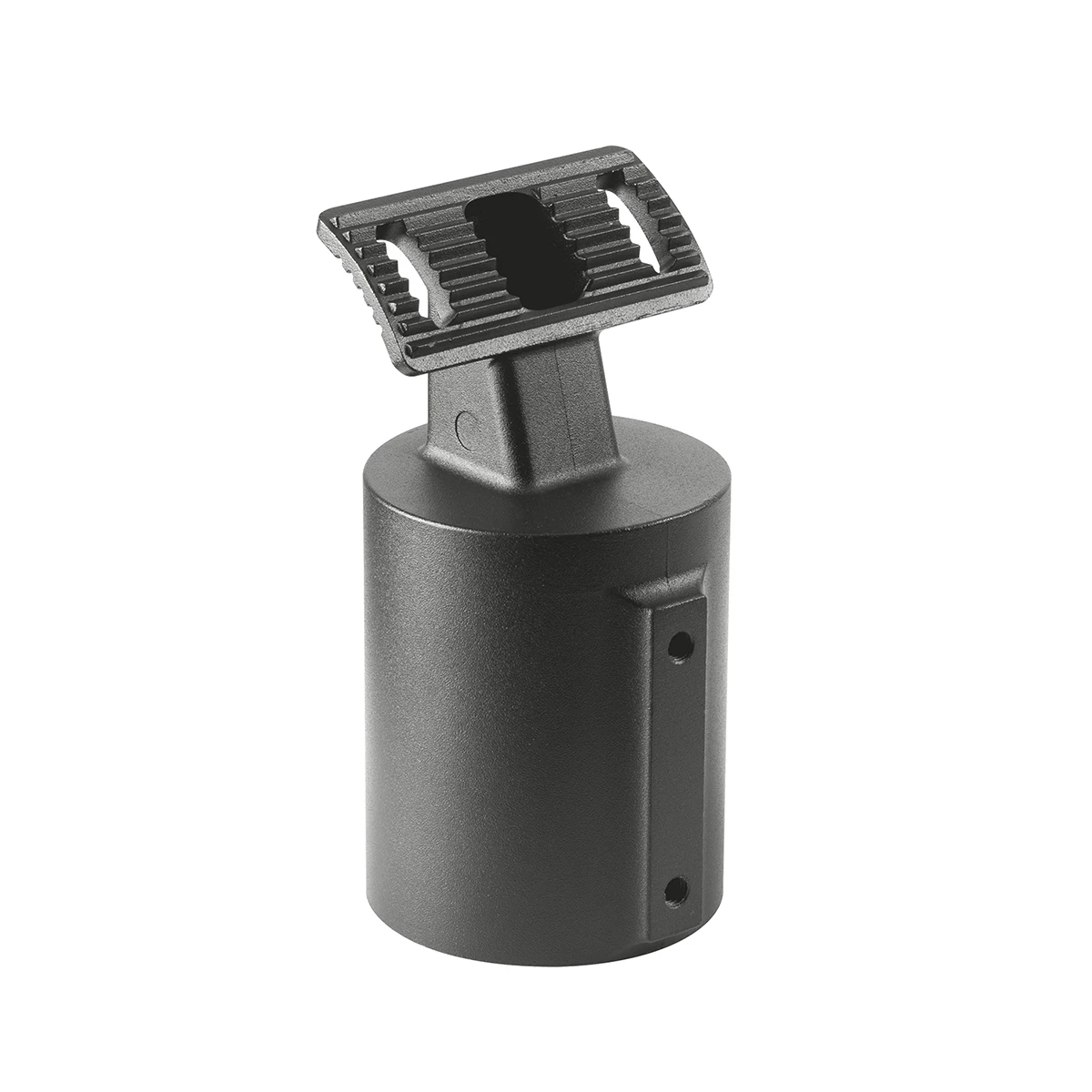

Accessories/spare parts for light pole Performance In Lighting LYRA+
