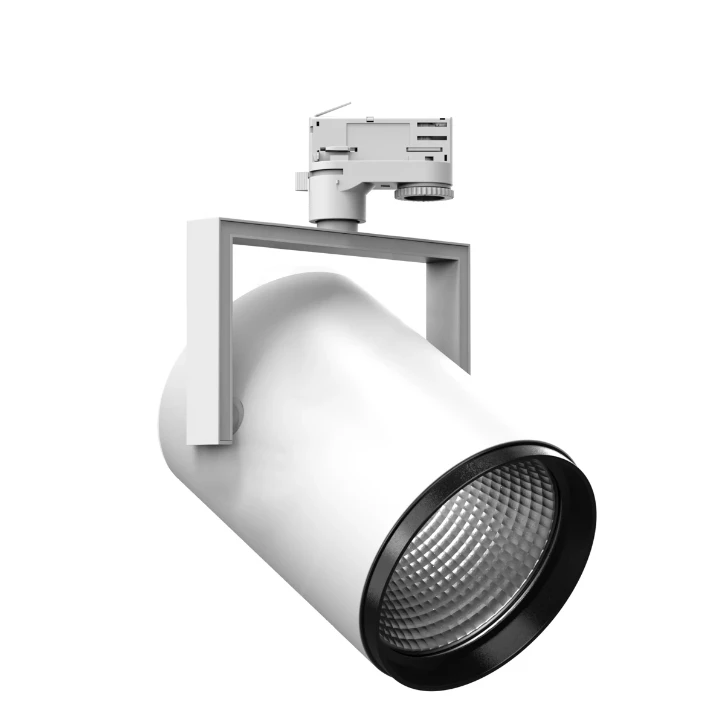

LED-Stromschienenstrahler 4000K 40W statisch runde Optik medium
- 7590-5637
- |
- 3108427
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
LED-Stromschienenstrahler 4000K 40W statisch runde Optik medium
LED-Stromschienenstrahler 4000K 40W statisch runde Optik medium
Ordercode YESSS
7590-5637
Product code
3108427
EAN code
4046075062099
Product group
Downlight/spot/floodlight
Brand
Performance In Lighting
Serie
AS 425-427
Type
3108427
Product description
LED-Stromschienenstrahler für den Innenbereich, bestehend aus: Strahlerkopf aus Aluminium-Strangpressprofil und Aluminiumdruckguss, pulverbeschichtet. Strahlerkopf dreh- und schwenkbar. Hochglänzender Kugelfacetten-Reflektor aus Reinstaluminium für maximalen Leuchtenwirkungsgrad und neutrale Farbwiedergabe. Blendring mit Bajonettverschluss zum werkzeuglosen Wechsel von Reflektor und Lichtoptik. Reflektor in Ausführung Spot, Medium oder Wide flood. Farbtoleranz nach MacAdam ≤3 SDCM. Allgemeiner Farbwiedergabeindex Ra > 80. LED-Lebensdauer von 60.000 Stunden bei 80% Ausgangslichtstrom (L80B10). Inkl. 3-Phasen-Universaladapter. Inkl. elektronischem Konverter. Werkzeugfreie, installationsfreundliche Montage. Inkl. klarer ESG-Schutzscheibe.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Rotating and swivelling
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
High-gloss
Light distribution
Symmetric
Suitable for number of light sources
1
Lamp holder
None
Type of control gear
LED operating device current-controlled
Suitable for lamp power
40 - 40 W
With control gear
Yes
Nominal current
1050 - 1050 mA
Dimmable
Yes
Max. system power
40 W
Surface brushed
No
Nominal voltage
220 - 240 V
Colour temperature
4000 - 4000 K
Housing material
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Beam angle
21-40° - Medium beam
Dimming potentiometer (integrated)
No
Length
260 mm
Width
125 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
169 mm
Voltage type
AC/DC
Dimming mains voltage modulation
No
Outer diameter
95 mm
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK02
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Diffuser lens/optic/panel
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Type of wiring
Ending
Number of poles
4
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Colour consistency (McAdam ellipse)
SDCM3
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
Yes
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
91.6 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
88.6 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
79.2 %
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
64
Max. number of luminaires per miniature circuit breaker C16 (MCB)
64
IFTTT support available
No
Unified Glare Ratio (UGR)
15.6
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Operation by Bluetooth
No
Reflector colour
Silver
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
With presence detector
No
Containing product according to 2019/2020/EU
Yes
Total harmonic distortion (THD)
10 %
Rated luminous flux according to IEC 62722-2- 1
4340 - 4340 lm
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
Other
Emergency power supply system
None
Luminaire efficacy
108.5 - 108.5 lm/W
