General information

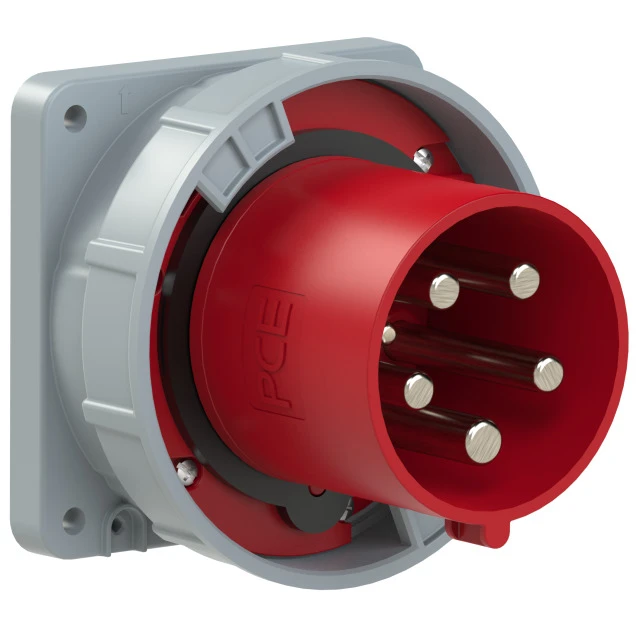

CEE-Anbaugerätestecker gerade 125A 5p 6h IP67 POWER TWIST
CEE-Anbaugerätestecker gerade 125A 5p 6h IP67 POWER TWIST
Ordercode YESSS
7551-4733
Product code
645-6
EAN code
9003399069000
Product group
CEE appliance inlet (IEC 60309)
Brand
PCE
Type
645-6
Product description
CEE-Anbaugerätestecker gerade 125A 5p 6h IP67 POWER TWIST; Gehäusematerial: PA6; Nennstrom: 125A; Polzahl: 5 (3P+N+PE); Uhrzeit-Stellung: 6h; Nennspannung/Frequenz: 200/346V~ - 240/415V~ / 50+60Hz; Kontakte: Messing vernickelt, mit Pilotkontaktstift; Anschlusstechnik: Rahmenklemmen mit Schrauben; Abmessungen (Flansch/Bohrung): 120x120 mm / 100x100 mm; Schutzart: IP66/IP67
Product specifications
Number of poles
5
IEC-amperage
125 A
Identification colour
Red
Clock hour position
6 h
Degree of protection (IP)
IP67
Connection system
Screwed terminal
Material
Plastic
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Construction type
Built-up device plug
Insert direction
Straight
Contact material
CuZn
Surface coating contacts
Nickel-plated
